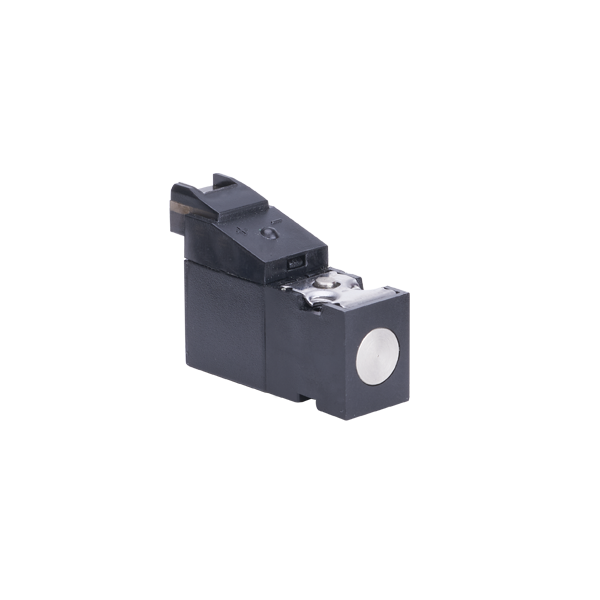

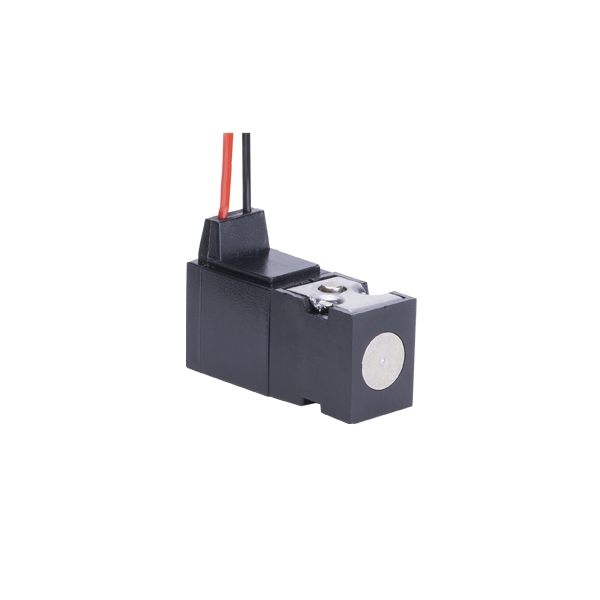

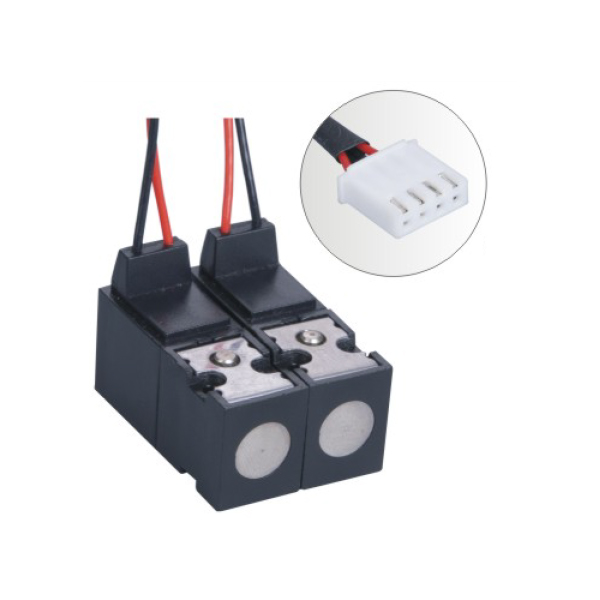

The 371 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. It can control the operation of a single-acting cylinder at high frequency, and can also be used as a pilot valve for a large flow valve. There are two functions: normally closed (NC) and normally open (NO), and two shapes: two-hole self-draining and three-hole valve plate exhaust. Special instructions are required when using in vacuum. Two-position two-way, two-position three-way, normally closed (NC) or normally open (NO) Can be used in vacuum (100kpa)
Leading 371 Series Direct Acting Miniature Electromagnetic Valve (10mm) Customizable Vacuum Breaker Solenoid Valve suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

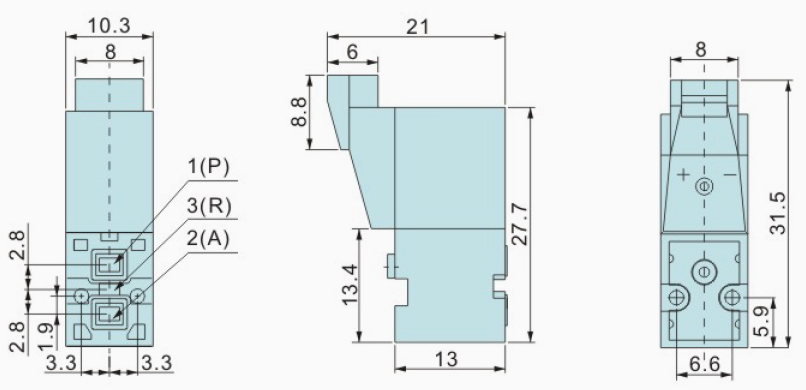

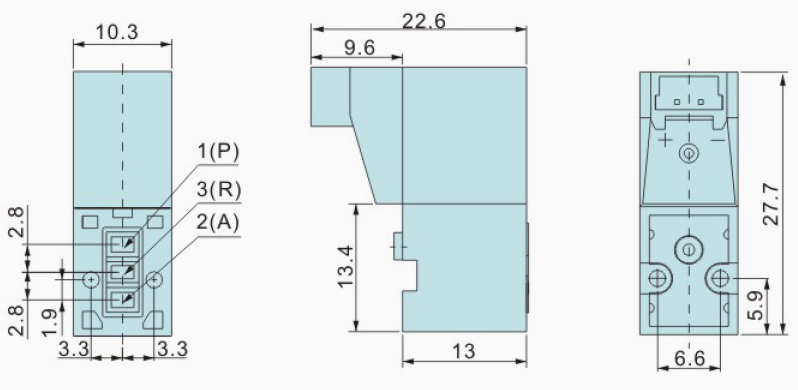

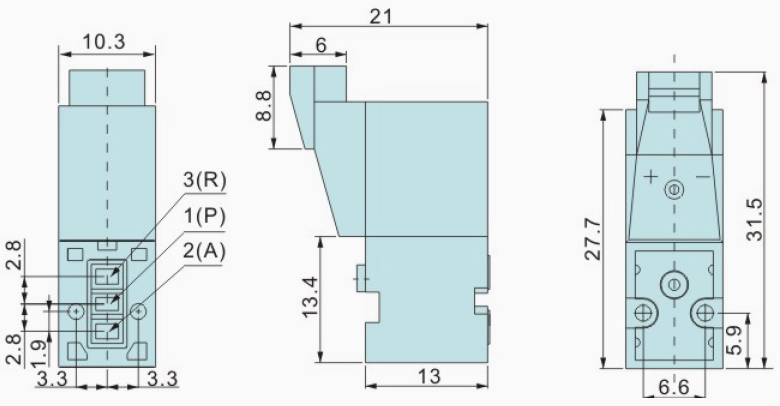

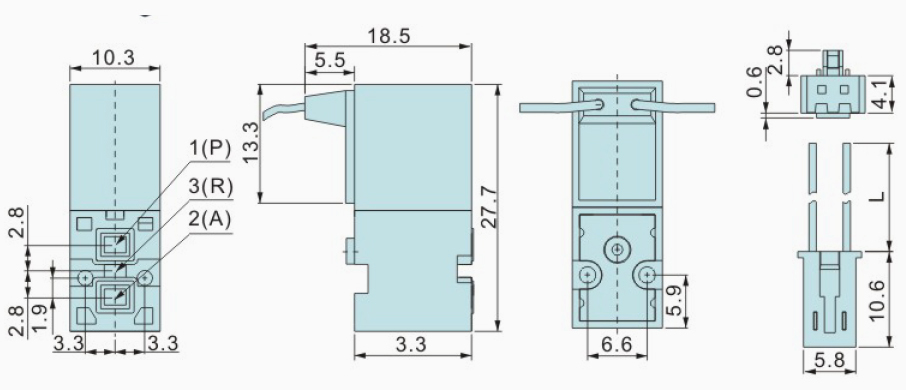

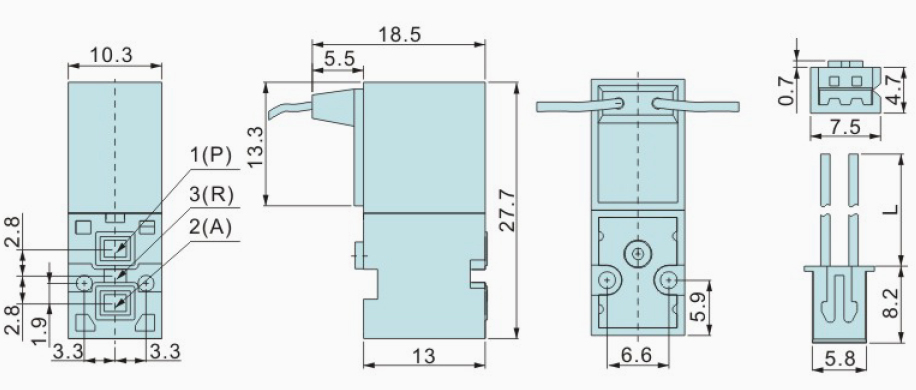

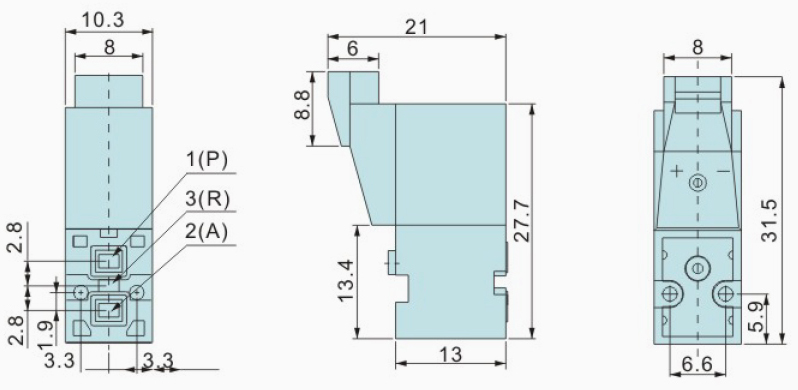

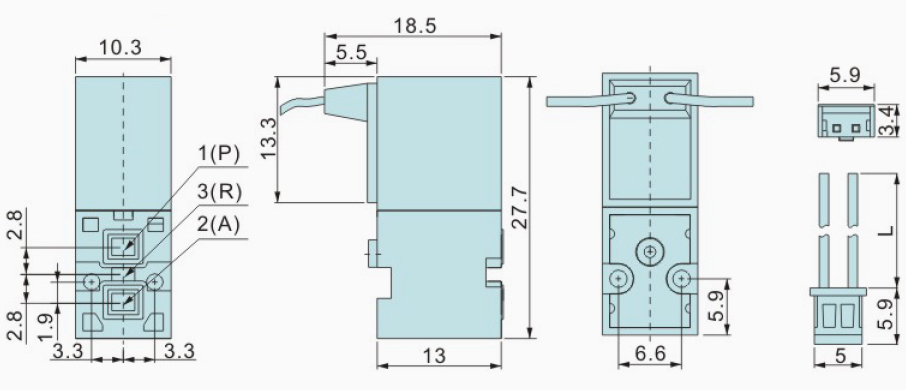

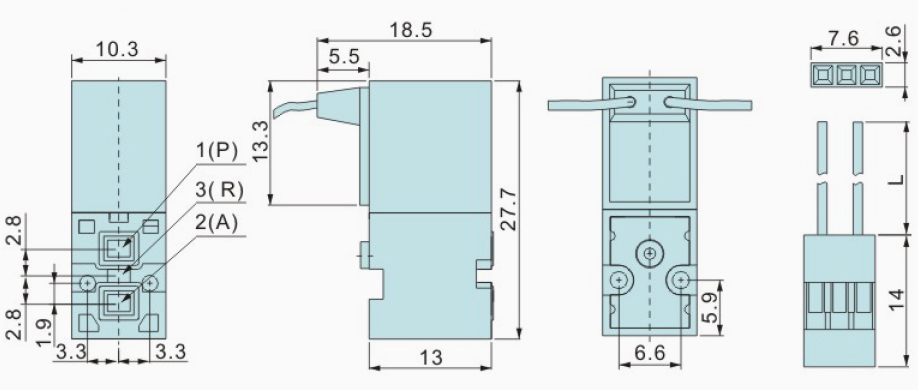

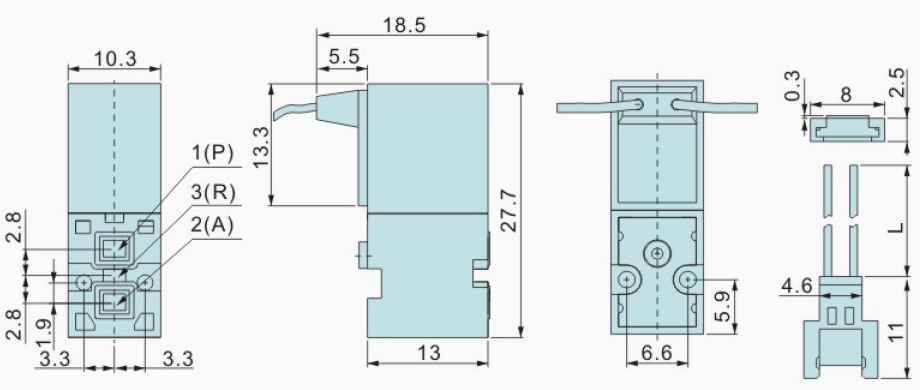

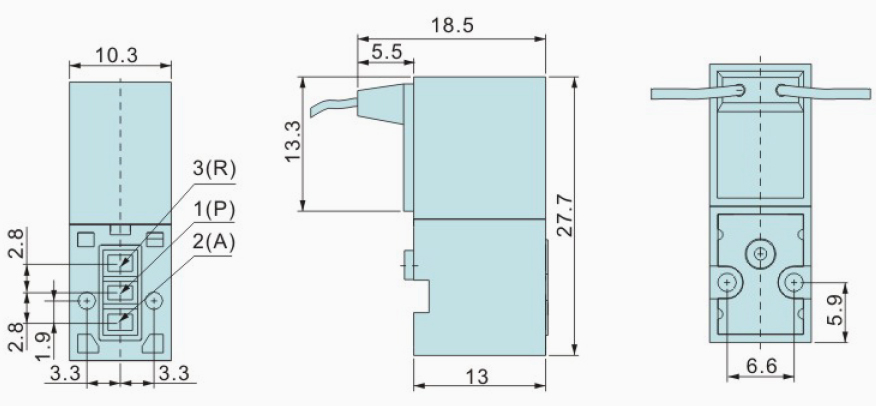

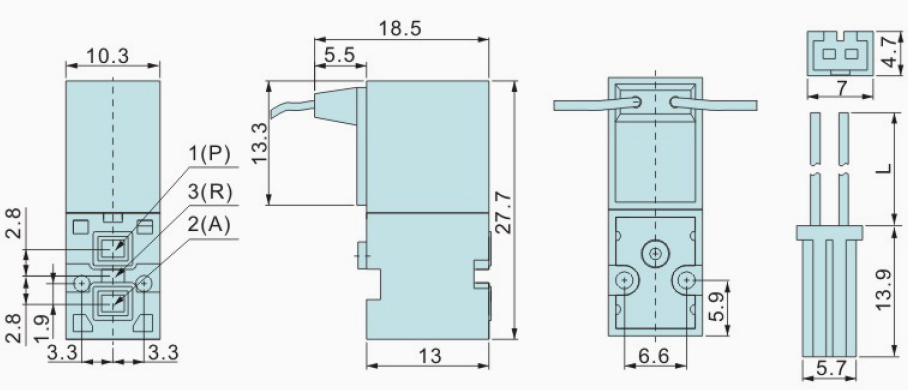

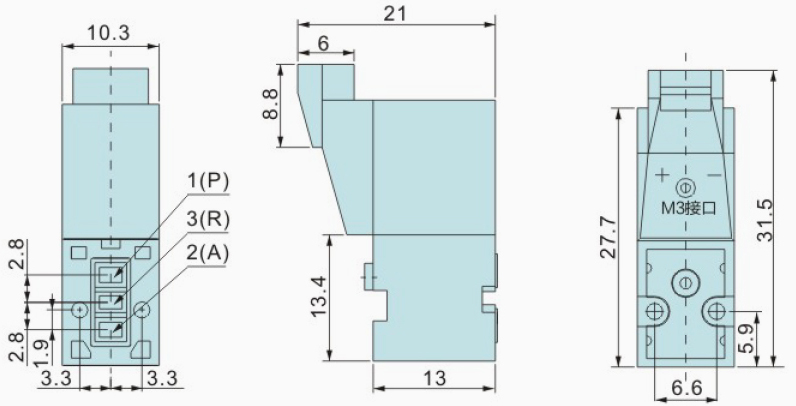

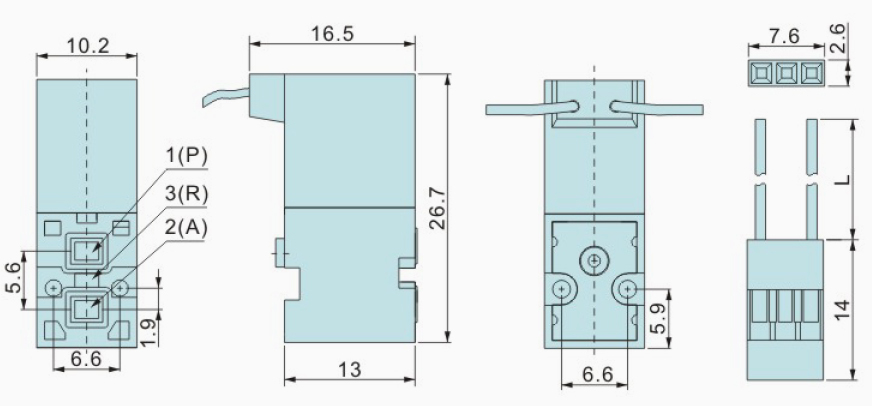

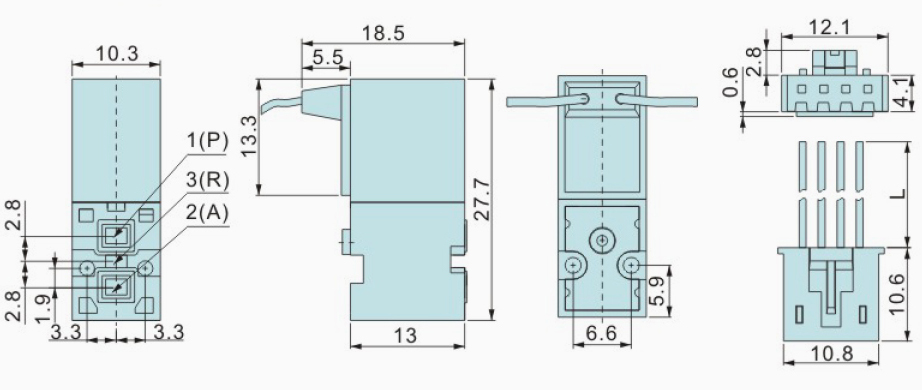

| Two-position three-way normally closed electric circuit diagrams: |  |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-digit three-normally open gas circuit diagram: |  |
| Two-digit three-normally open gas circuit diagram: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
Comprehensive parameters:
| Pneumatic parameters | |||
| Valve position function | Two-position three-way, normally closed (NC) or normally open (NO) | Work pressure | 0-6bar (NO), 0~7bar (NC), -100kpa |
|
Working way |
Cut-off | Medium and ambient temperature | -5°C~50°C (but not frozen) |
| Installation method | free | Working medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
| The way to | 0.7mm | Response time | Open <6ms, close <8ms |
| Nominal flow | 19L/min (0.7 diameter, at 6bar) | Manual device |
Press-button manual switch |
| Materials in contact with the medium | |
| Valve body | Engineering plastics |
| Seals | FKM (fluorine rubber), NBR (nitrile rubber) |
| Internal parts | Stainless steel, copper |
| Electrical parameters | |
| Voltage | DC6V. DC12V. DC24V (other power supplies can be provided on request) |
| Voltage tolerance | ±10% |
|
Consumed power |
1.3W |
|
Working cycle |
work continuously 100% |
|
Electrical connection |
Socket or direct outgoing line |
|
Ingress protection |
IP50, IP65 (direct outgoing line type) |

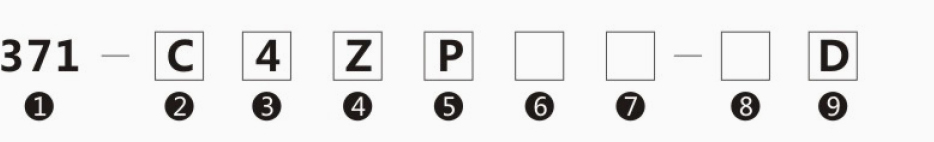

Model Denotation Method Of 371 Series：
Note: When the item is "blank", it will be omitted automatically, as stated above: 371-C4ZP-D
| symbol | content |
| ① | 371 series |
| ② Function | C: Normally closed (NC) O: Normally open (NO) |
| ③ Voltage | 4: DC24V 2: DC12V 6: DC6V T: Special voltage |
| ④ Socket connection method | Z: 90°right angle type S: 180°horizontal type X:direct outgoing line type |
| ⑤ Circuit board type | P: With two-way indicator light G: With light with overvoltage protection circuit Blank: Without circuit board |
| ⑥ Wiring length |
Blank: No wiring A: Wiring length 125mm |
| ⑦ Plug type | Blank: No plug 1: A1 2: A2 3: A3 4: A4 5: A5 6: A6 7: A7 8: A8 9: A9 |
| ⑧ Exhaust or exhaust type |
Blank: Two-hole self-exhaust F: Three-hole valve plate exhaust |
| ⑨ Length type | Blank: standard length D: Non-standard short products (length 26.7mm) |
Information to be updated
