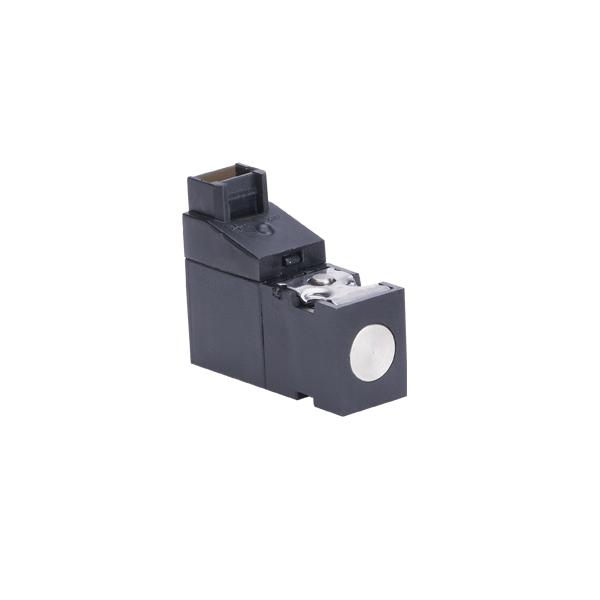

The 371 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. It can control the operation of a single-acting cylinder at high frequency, and can also be used as a pilot valve for a large flow valve. There are two functions: normally closed (NC) and normally open (NO), and two shapes: two-hole self-draining and three-hole valve plate exhaust. Special instructions are required when using in vacuum. Two-position two-way, two-position three-way, normally closed (NC) or normally open (NO) Can be used in vacuum (100kpa)

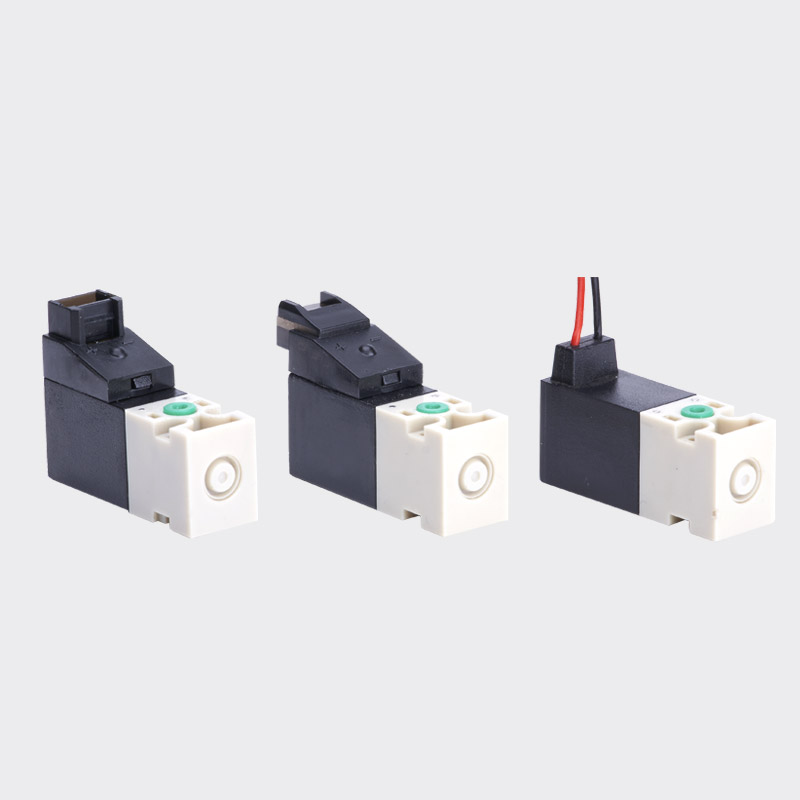

The 372 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. There are two types of 0.4W and 0.75W. The 0.75W high-flow type can replace the 371 series to control the operation of the single-acting cylinder, and 0.4W is used as the pilot valve of our company's YSY series. Because the power is small, the heat generation is small. There are two functions: normally closed (NC) and normally open (NO). Special instructions are required when using vacuum.

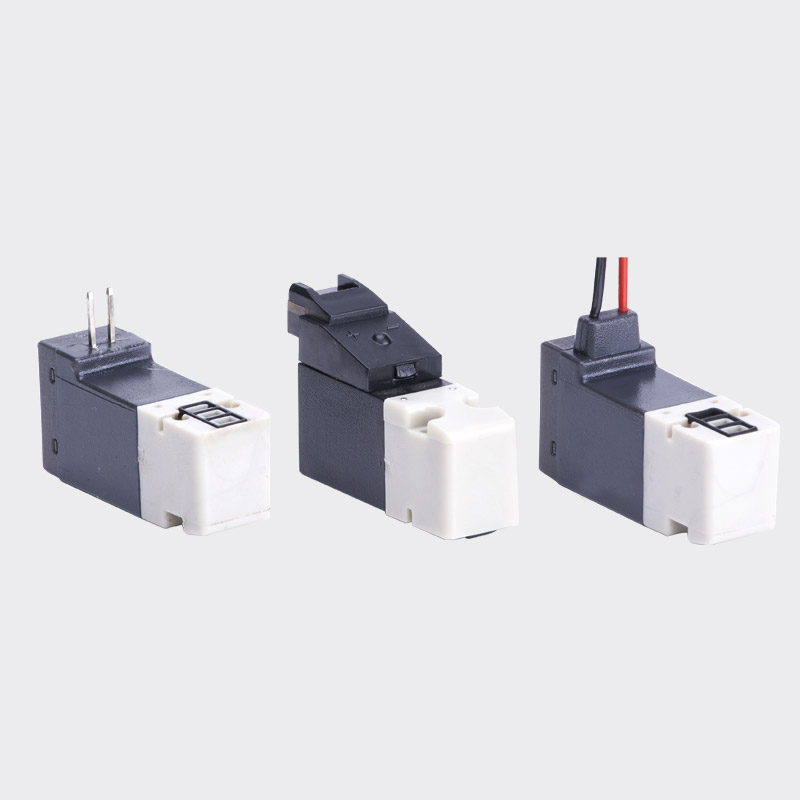

The 373 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. The two-position three-way type can control the operation of a single-acting cylinder at high frequency. The valve installed with energy-saving module maintains a power of 0.3W, which greatly reduces power consumption and heat generation. It can be widely used in the fields of knitting machinery, automation, scientific research, etc. Special instructions are required when using vacuum.

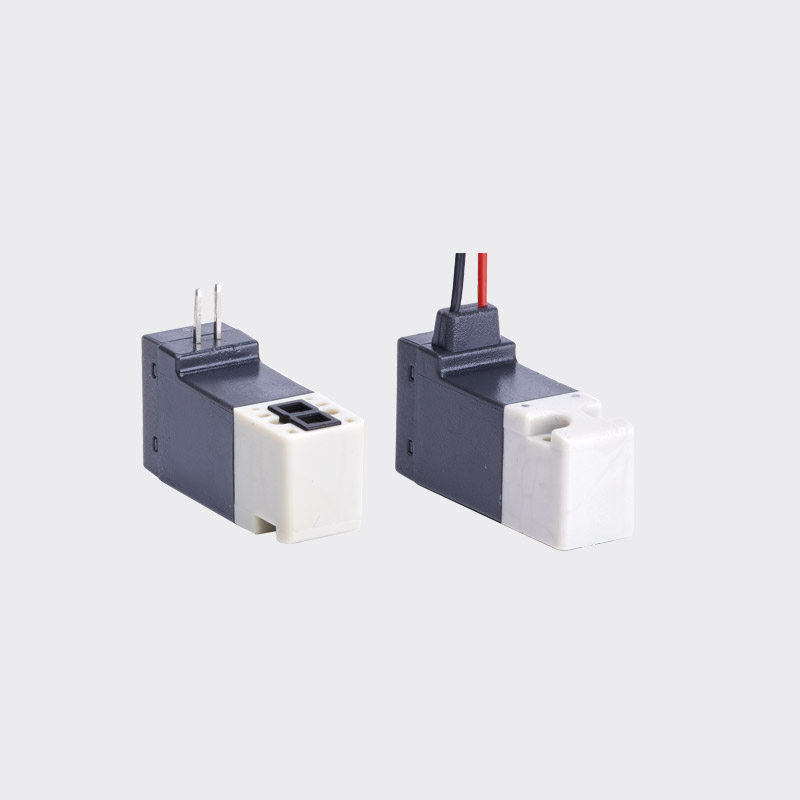

The 375 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. It can meet the requirements of large-flow ventilation, and has two-way on-off function. Different diameter specifications can be provided to meet customer requirements. Special instructions are required when using vacuum.

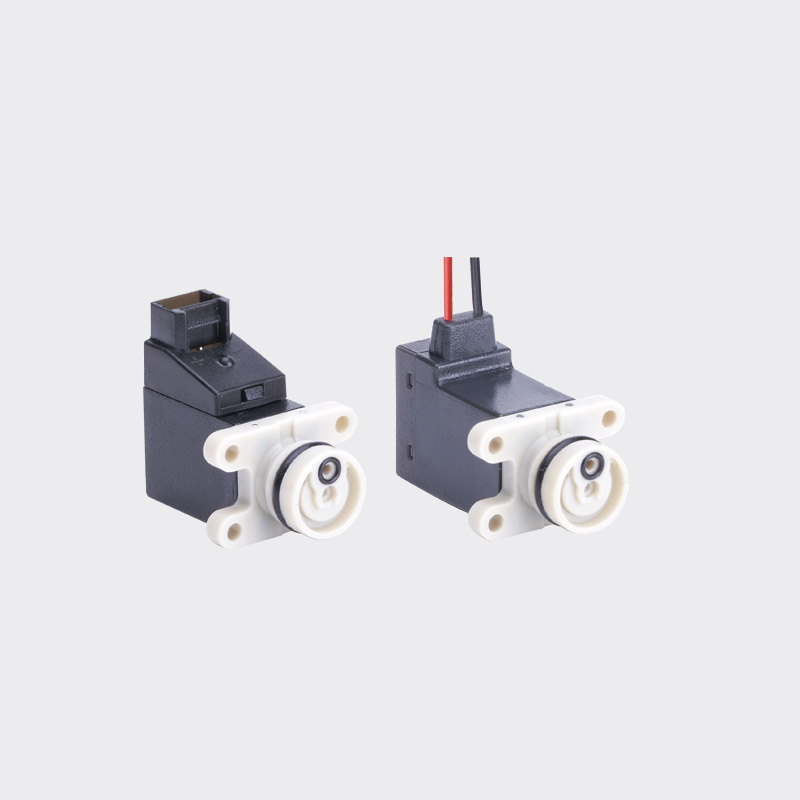

The 376 series is suitable for installation in special spaces. It can control single-acting cylinders and can also be used as pilot valves. It can be equipped with multiple power options to meet different needs and is widely used in life sciences, automation and other fields. Special instructions are required when using in vacuum.
The 377 buried solenoid valve is a new product designed and developed specifically for knitting machinery with limited installation space or customers who require integrated and buried installation in special fields. Special instructions are required when using in vacuum.

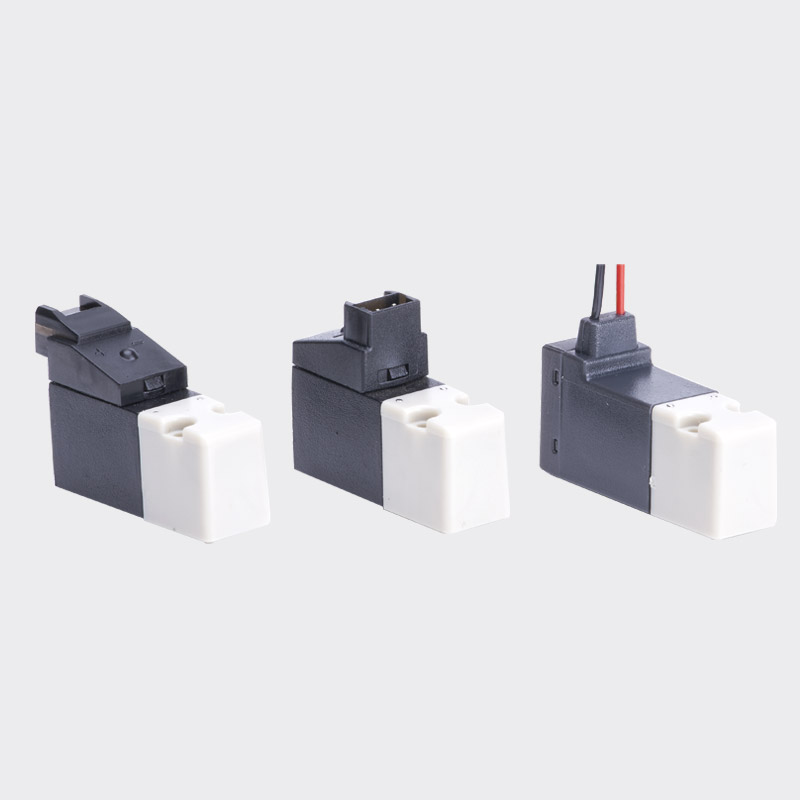

The 378 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. The two-position three-way type can control the operation of a single-acting cylinder with high frequency, and can also be used as a pilot valve for a large flow valve. It has stable, and reliable performance, which can completely replace the pilot valve of foreign brands. Special instructions are required when using in vacuum.
