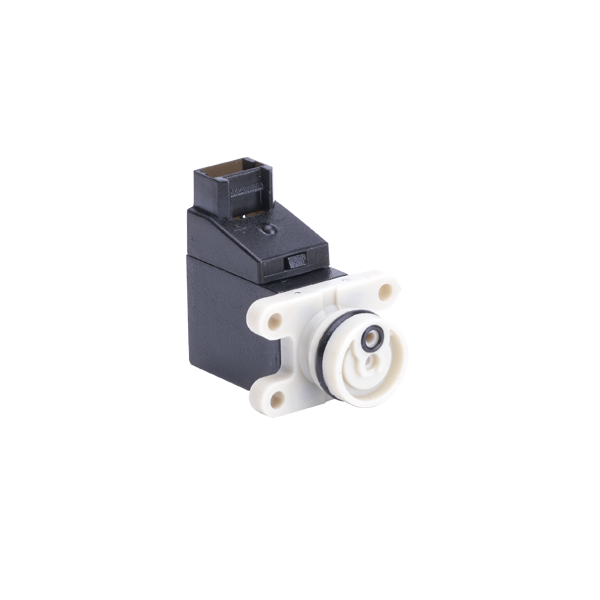

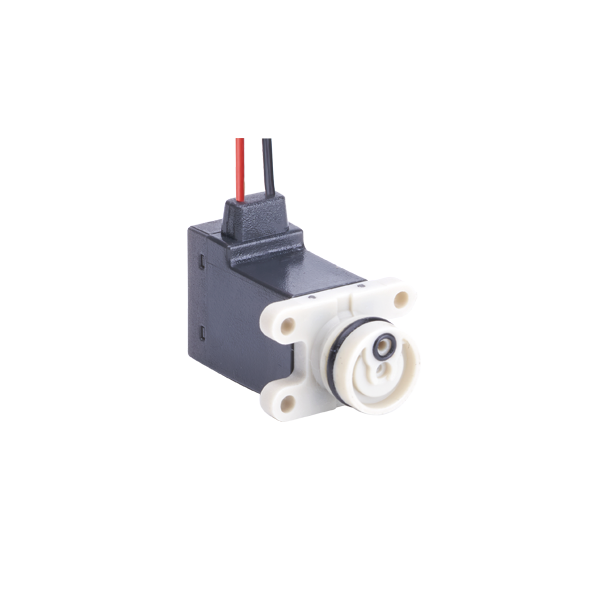

Two-position two-way solenoid valve, center pin, DC24V, energy saving 0.5W
Information to be updated
menu
The 376 series is suitable for installation in special spaces. It can control single-acting cylinders and can also be used as pilot valves. It can be equipped with multiple power options to meet different needs and is widely used in life sciences, automation and other fields. Special instructions are required when using in vacuum.
Leading 376 Series Embedded Direct Acting Solenoid Valve (10mm)Low power consumption High flow rate Customizable miniature priority valve suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.
Comprehensive parameters:
| Pneumatic parameters | |||
| Valve position function | Two-position two-way Two-position three-way | Work pressure | 0~0.7Mpa), -100kpa |
| Way of working | Cut-off | Medium and ambient temperature | -5°C~50°C (but not frozen) |
| Installation method | Free installation | Working medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
| The way to | 0.6mm | Response time | Open <8ms, close <10ms |
| Nominal flow | 14L/min (at 6bar) | Manual device | without |
| Materials in contact with the medium | |
| Valve body | Engineering plastics |
| Seals | FKM (fluorine rubber), NBR (nitrile rubber) |
| Internal parts | Stainless steel, copper |
| Electrical parameters | |
| Voltage | DC6V, DC12V, DC24V, AC110V, AC220V |
| Voltage tolerance | ±10% |
| Power consumption | 0.75W, 1W, 0.3W (with energy-saving module type) |
| Work cycle | 100% can work continuously |
| Electrical connections | Socket or direct lead wire |
| Protection level | IP50, IP65 (straight-line outlet type) |

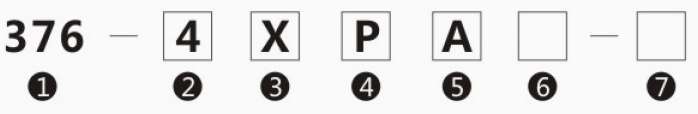

Model representation method of 376 series (refer to model 371 for direct outlet with plug):
Note: When the item is "blank", the position is automatically omitted, as stated above: 376-4XPA
| symbol | content |
| ① | 376 series |
| ② Voltage | 2: DC12V 4: DC24V 6: DC6V 3: AC110V 5: AC220V |
| ③ Connection method | X: Direct outlet type Z: 90° right angle type S: 180° horizontal type |
| ④ Circuit board type | Blank: wireless circuit board P: with two-way indicator G: With light with overvoltage protection circuit J: With energy-saving module |
| ⑤ Wiring length | Blank: No wiring A: Cable length 125mm B: Cable length 300mm C: Special requirements |
| ⑥ Plug type | Blank: No plug 1: A1 2: A2 3: A3 4: A4 5: A5 6: A6 7: A7 8: A8 9: A9 |
| ⑦ Coil power | Blank: 0.75W L: 1W H: 0.3W (with energy-saving module) T: Special power |
