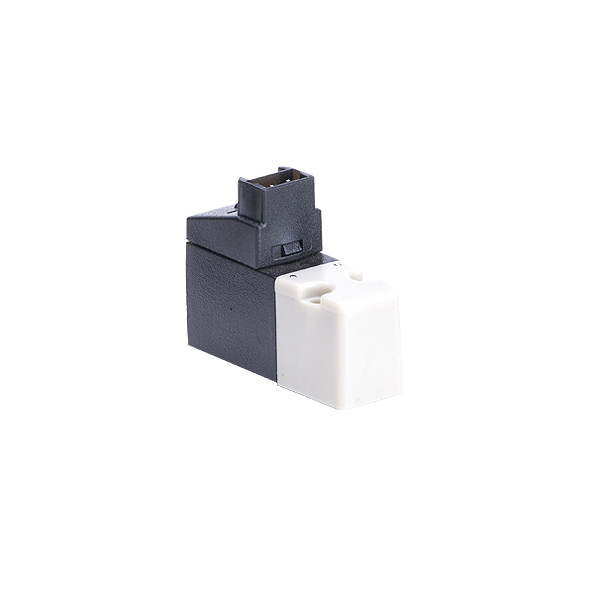

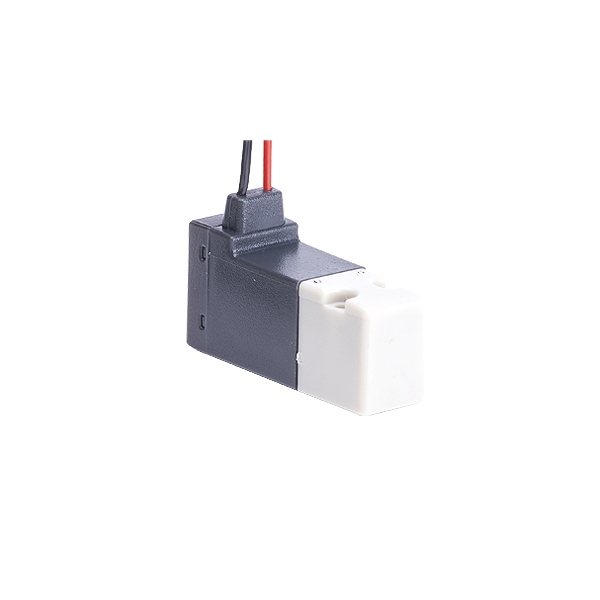

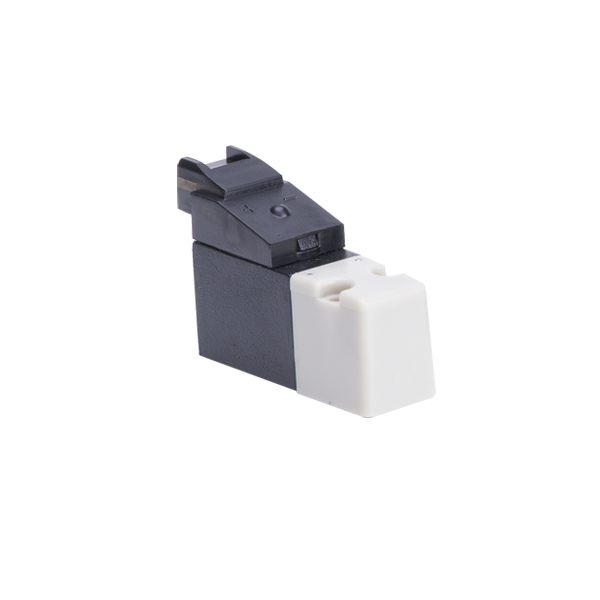

The 378 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. The two-position three-way type can control the operation of a single-acting cylinder with high frequency, and can also be used as a pilot valve for a large flow valve. It has stable, and reliable performance, which can completely replace the pilot valve of foreign brands. Special instructions are required when using in vacuum.
Leading 378 Series Direct Acting Miniature Electromagnetic Valve (10mm)Customizable Oxygen generator Solenoid Valve suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

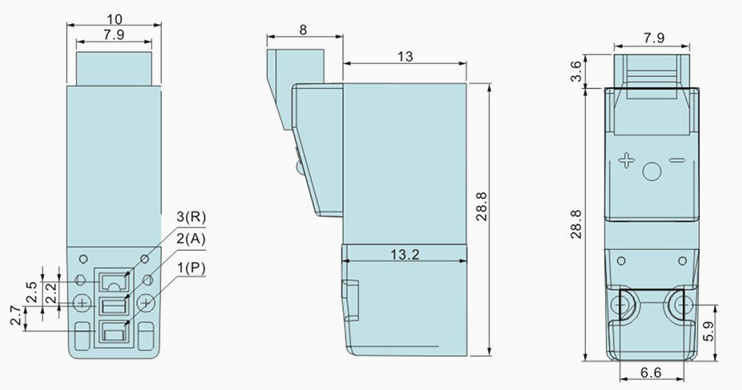

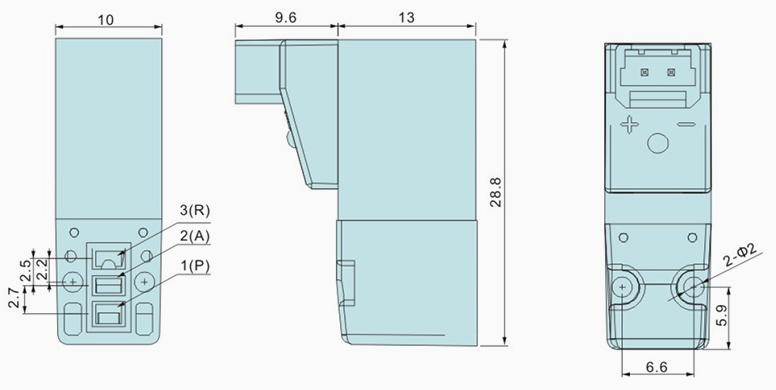

| Two-position three-way normally closed electric circuit diagrams: |  |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
Comprehensive parameters:
| Pneumatic parameters | |||
| Valve position function | Two-position two-way Two-position three-way | Medium and ambient temperature | -5°C~50°C (but not frozen) |
|
Diameter |
0.6mm, 1.1mm (other diameter requirements can be expanded) | Working medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
| Nominal flow | 14L/min (at 6bar), 40L/min (at 6bar) (large flow) Can expand requirements of other flow |
Response time | Open <8ms, close <10ms |
|
Working pressure |
0~0.7Mpa, -100kpa | Manual device | without |
| Materials in contact with the medium | |
| Valve body | Engineering plastics |
| Seals | FKM (fluorine rubber), NBR (nitrile rubber) |
| Internal parts | Stainless steel, copper |
| Electrical parameters | |
| Voltage | DC6V, DC12V, DC24V, AC110V, AC220V (other voltages can be provided on request) |
| Voltage tolerance | ±10% |
| Power consumption | 0.75W, 1W (special power can be customized) 0.3W, 0.5W (with energy-saving module type) |
| Work cycle | 100% can work continuously |
| Electrical connections | Socket or direct lead wire |
| Protection level | IP50, IP65 (straight-line outlet type) |

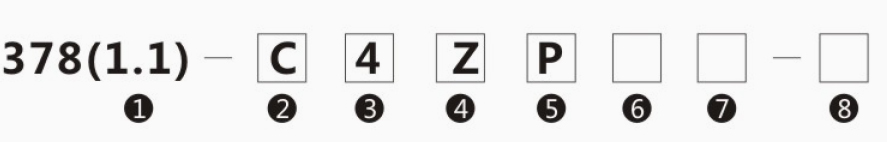

378 series model representation method (refer to model 371 for direct outlet with plug model representation):
Note: When the function item is "blank", the space position is automatically omitted, as expressed above: 378-C4ZP-F
| symbol | content |
| ① Path | Blank: 0.6 (1.1): diameter 1.1mm |
| ② Function | C: Normally closed (NC) O: Normally open (NO) |
| ③ Voltage | 2: DC12V 4: DC24V 6: DC6V 3: AC110V 5: AC220V |
| ④ Socket connection method | Z: 90°right angle type S: 180°horizontal type X: direct outlet type |
| ⑤ Circuit board type | Blank: Without circuit board P: With two-way indicator light G: With lamp with protection circuit J: With energy-saving template |
| ⑥ Wiring length | Blank: No wiring A: Cable length 125mm B: Cable length 300mm C: Special requirements |
| ⑦ Plug type | Blank: No plug 1: A1 2: A2 3: A3 4: A4 5: A5 6: A6 7: A7 8: A8 9: A9 |
| ⑧ Coil power | Blank: 0.75W L: 1W H: 0.3W (with energy-saving module) T: Special power |
