375 Series Direct Acting Miniature Electromagnetic Valve (10mm)Customizable miniature priority valve

The 375 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. It can meet the requirements of large-flow ventilation, and has two-way on-off function. Different diameter specifications can be provided to meet customer requirements. Special instructions are required when using vacuum.

Leading 375 Series Direct Acting Miniature Electromagnetic Valve (10mm)Customizable miniature priority valve suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

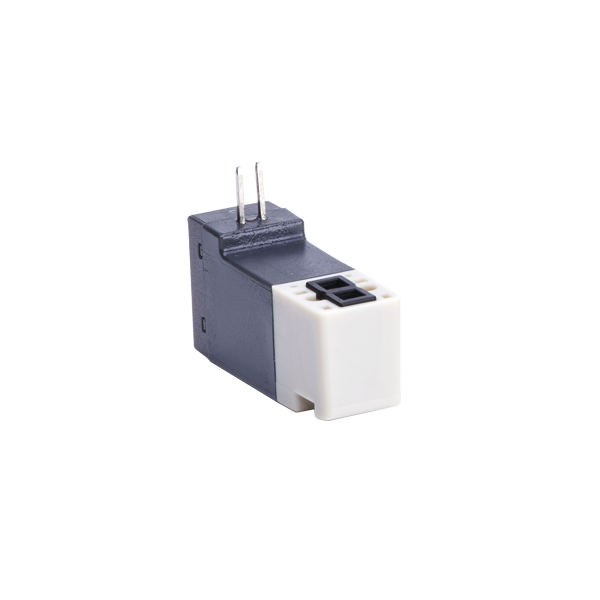

Optional Models:375 -1.5-4MJ

Two-position two-way solenoid valve, diameter 1.5, pin type, DC24V, energy saving 0.5W P→A
Note: 1(P)=air inlet 2(A)=working port

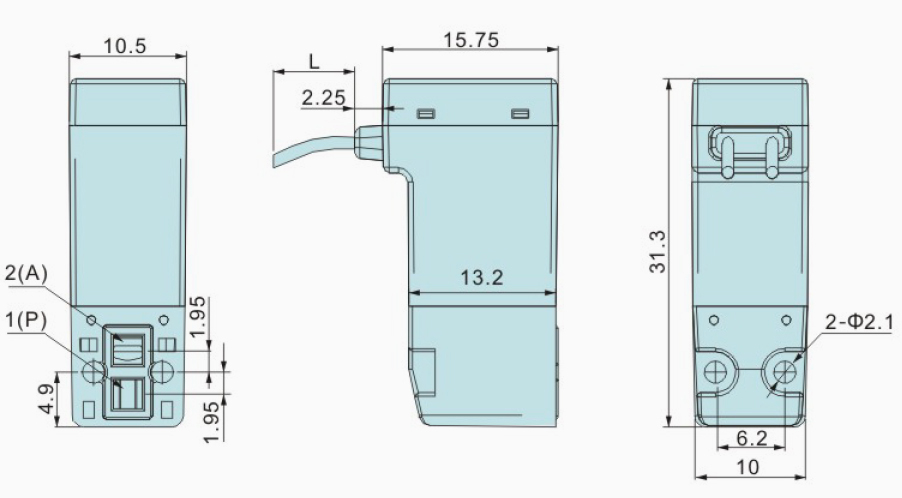

Optional Models:375 -2.0-2XJA-F

Two-position two-way solenoid valve, bore diameter 2.0, DC12V, energy saving 0.5W, cord length 125mm without lead A→P
Note: 1(P)=air inlet 2(A)=working port

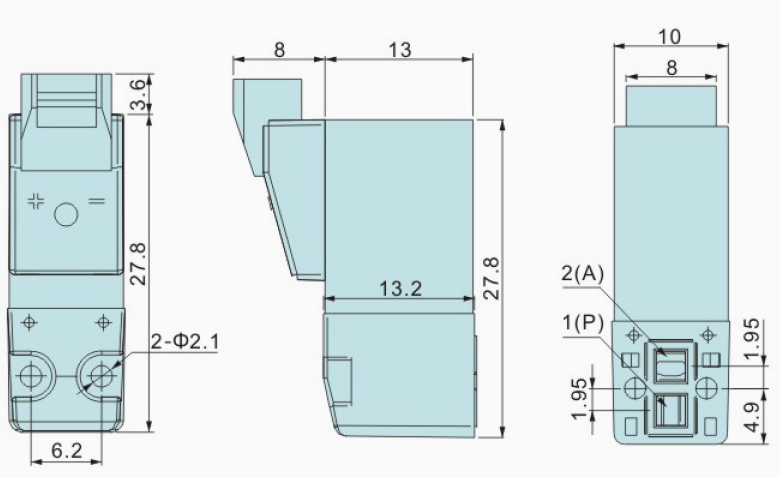

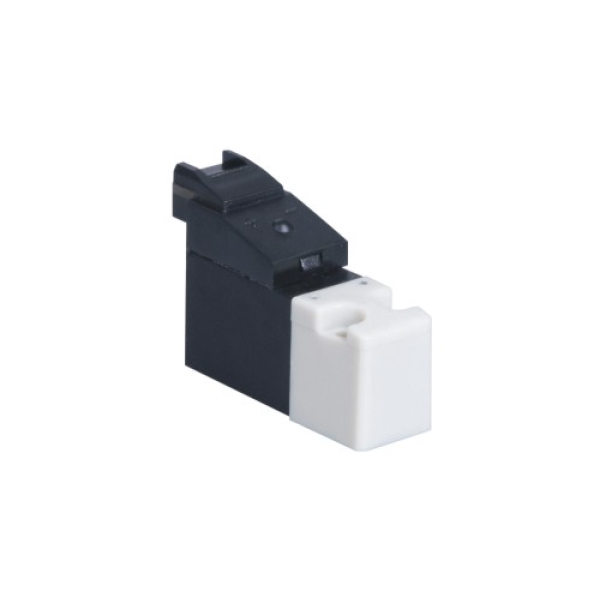

Optional Models:375-0.8-2SP-H

Two-position two-way solenoid valve, diameter 0.8, 12V, 1W, two-way indicator light, horizontal type P→A
Note: 1(P)=air inlet 2(A)=working port

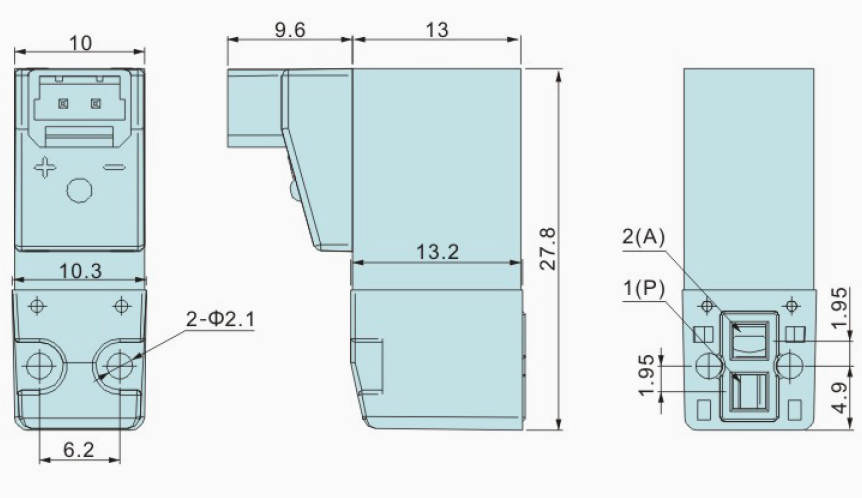

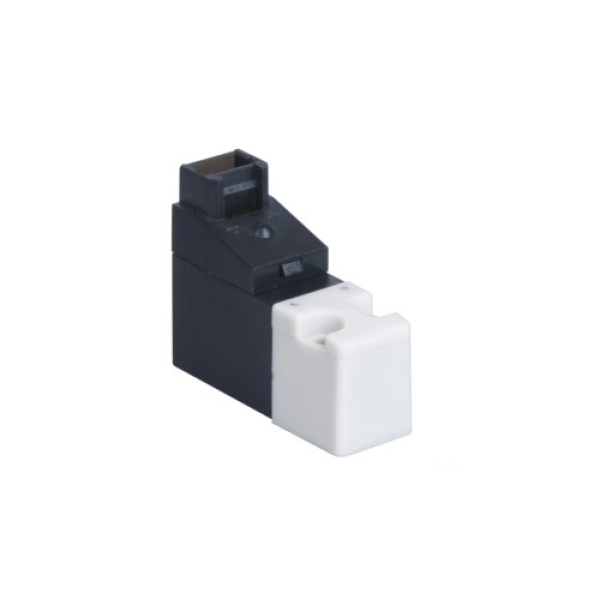

Optional Models:375-0.8-4ZP-H

Two-position two-way solenoid valve, diameter 0.8, 24V, 1W, two-way indicator light, right angle type P→A
Note: 1(P)=air inlet 2(A)=working port

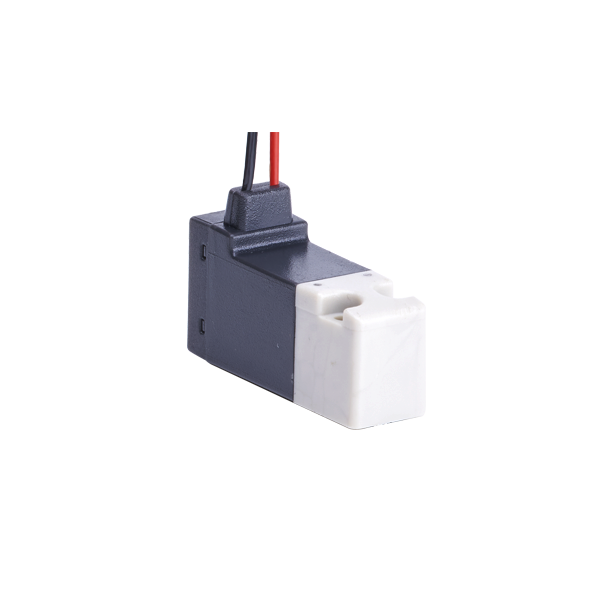

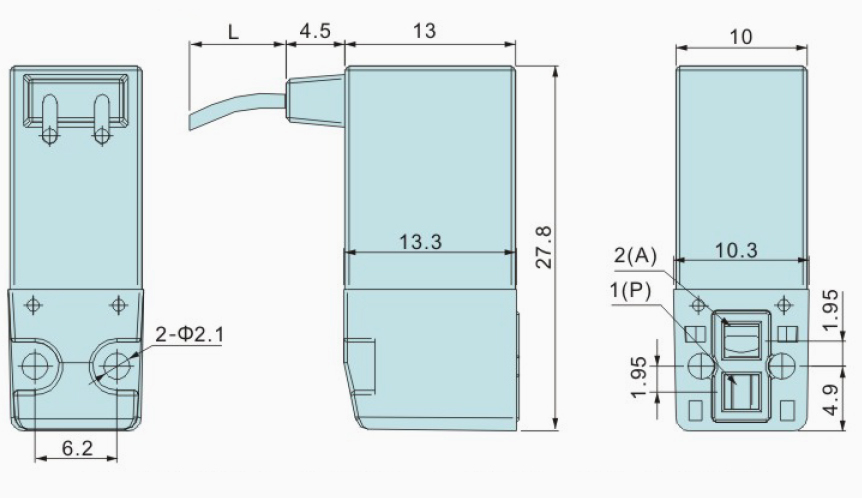

Optional Models:375-4XA-HF

Two-position two-way solenoid valve, diameter 0.8, DC24V, 1W, direct wire out, wire length 125mm, A→P
Note: 1(P)=air inlet 2(A)=working port

Comprehensive parameters:

Pneumatic parameters
Valve position function	Two-position two-way	Work pressure	0~0.7Mpa (0.8mm diameter), -100kpa ~0.3Mpa (1.5mm, 2.0mm diameter)
Way of working	Cut-off	Medium and ambient temperature	-5°C~50°C (but not frozen)
Installation method	free	Working medium	Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas
The way to	0.8mm, 1.5mm, 2.0mm	Response time	Open <8ms, close <10ms
Nominal flow	23L/min (2.0 diameter, at 2bar)

Materials in contact with the medium
Valve body	Engineering plastics
Seals	FKM (fluorine rubber), NBR (nitrile rubber)
Internal parts	Stainless steel, copper

Electrical parameters
Voltage	DC6V, DC12V, DC24V, AC110V, AC220V
Voltage tolerance	±10%
Power consumption	0.3W (energy-saving type), 0.75W, 1W
Work cycle	100% can work continuously
Electrical connections	Socket or direct lead wire
Protection level	IP50, IP65 (straight-line outlet type)

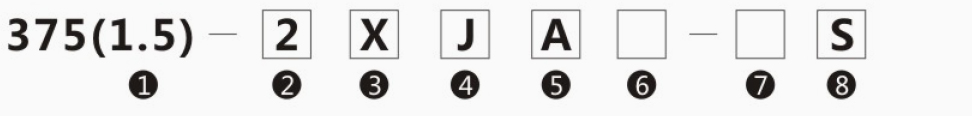

Model Denotation Method Of 375 Series (Model Denotation Method Of direct outgoing line type with plug refers to 371 Series):

Note: When the item is "blank", the position is automatically omitted, as stated above: 375-2XJA

symbol	content
① Diameter	0.8: The diameter is 0.8mm 1.5: The diameter is 1.5mm 2.0: The diameter is 2.0mm
② Voltage	2: DC12V 4: DC24V 6: DC6V 3: AC110V 5: AC220V
③ Socket connection method	M: Pin type X: Direct outgoing line type Z: 90° right angle type S: 180° horizontal type
④ Circuit board type	Blank: wireless circuit board P: with two-way indicator light G: With light and overvoltage protection circuit J: With energy-saving module
⑤ Wiring length	Blank: No wiring A: Wiring length 125mm B: Wiring length 300mm C: Special requirements
⑥ Plug type	Blank: No plug 1: A1 2: A2 3: A3 4: A4 5: A5 6: A6 7: A7 8: A8 9: A9
⑦ Coil power	Blank: 0.3W (energy-saving type) L: 0.75W H: 1W T: Special power
⑧ Medium flow direction	Blank: P→A F:A→P S: P← →A
