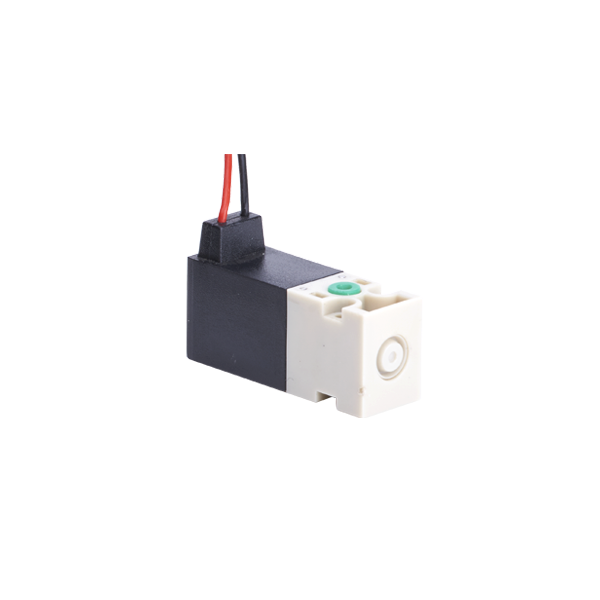

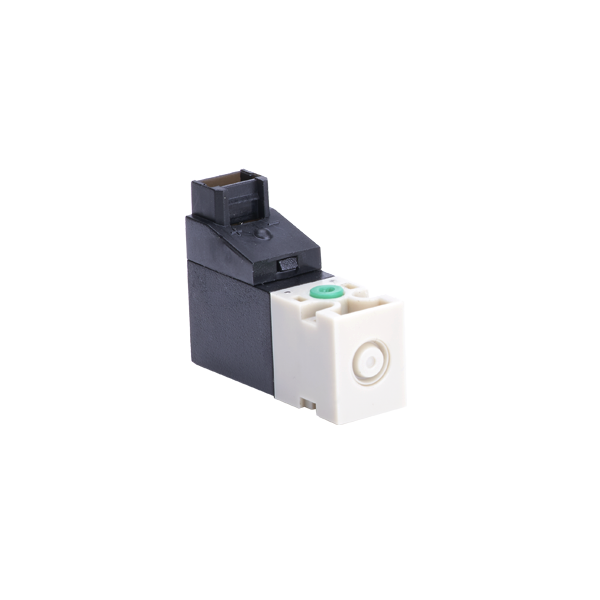

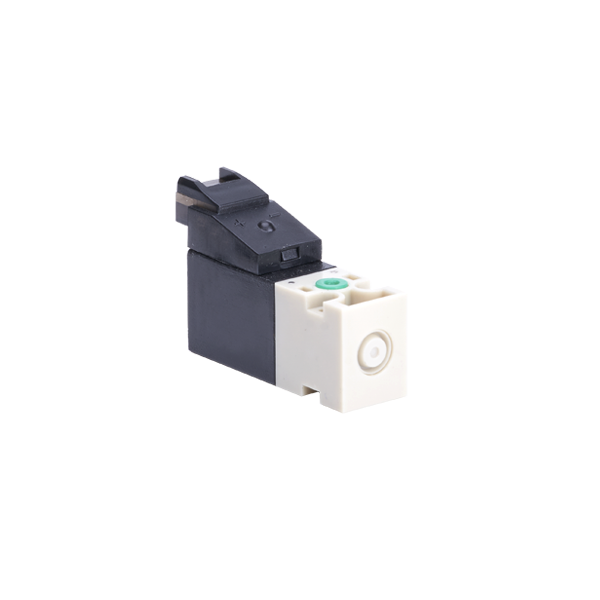

The 372 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. There are two types of 0.4W and 0.75W. The 0.75W high-flow type can replace the 371 series to control the operation of the single-acting cylinder, and 0.4W is used as the pilot valve of our company's YSY series. Because the power is small, the heat generation is small. There are two functions: normally closed (NC) and normally open (NO). Special instructions are required when using vacuum.
Leading 372 Series Direct Acting Miniature Electromagnetic Valve (10mm)Customizable Knitting Sock Machine Solenoid Valve suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

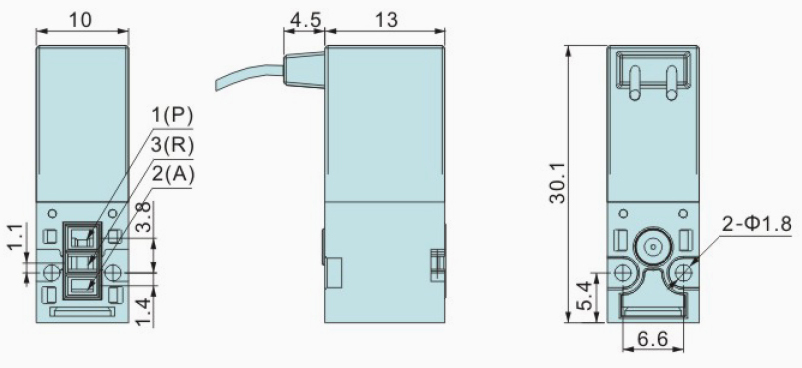

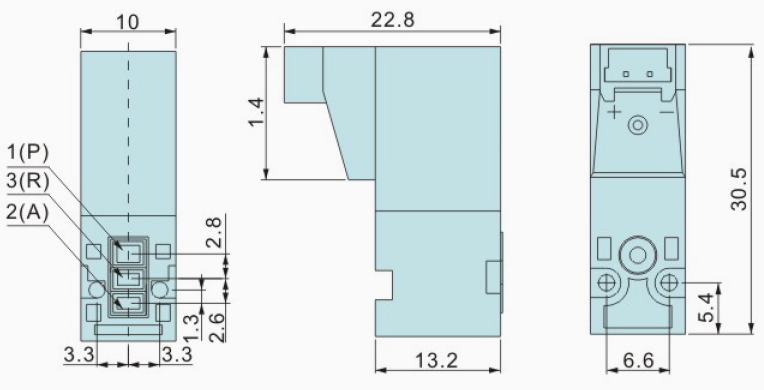

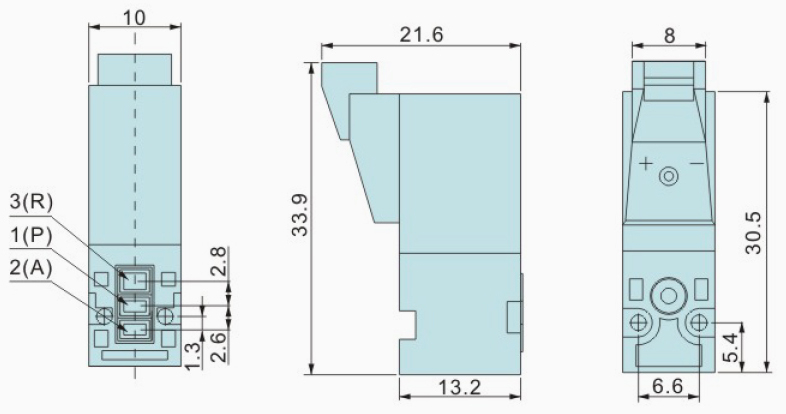

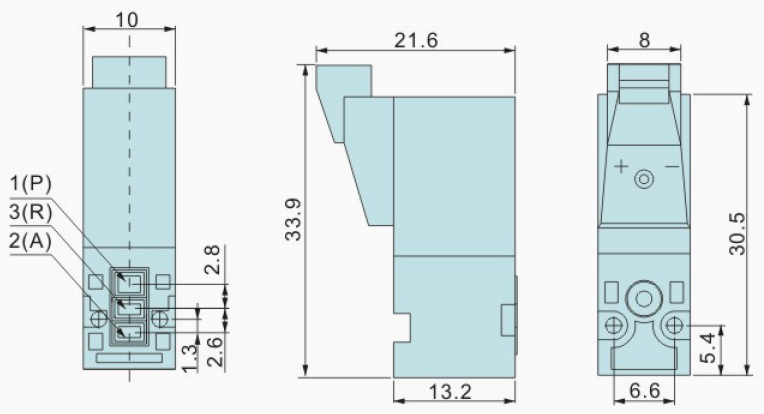

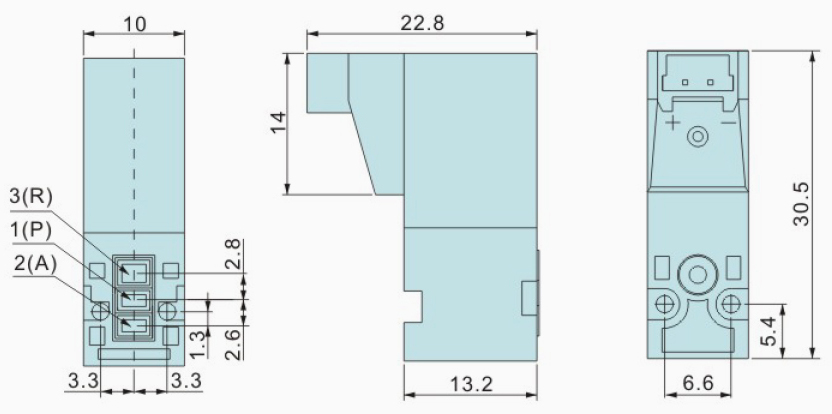

| Two-position three-way normally closed electric circuit diagrams: |  |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-digit three-normally open gas circuit diagram: |  |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-digit three-normally open gas circuit diagram: | |
Comprehensive parameters:
| Pneumatic parameters | |||
| Valve position function | Two-position two-way, two-position three-way, normally closed (NC) or normally open (NO) | Work pressure | 0-6bar (NO), 0~7bar (NC), -100kpa (NC, NO two functions) |
| Way of working | Cut-off | Medium and ambient temperature | -5°C~50°C (but not frozen) |
| Installation method | free | Working medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
| The way to | 0.6mm, 0.8mm, 1.0mm (large flow, two-way type) | Response time | Open <6ms, close <8ms |
| Nominal flow | 14L/min (0.4W, 6bar time), 18L/min (0.75W, 6bar time) | Manual device | Push-button manual switch or push-button and locking manual switch |
| Materials in contact with the medium | |
| Valve body | Engineering plastics |
| Seals | FKM (fluorine rubber), NBR (nitrile rubber) |
| Internal parts | Stainless steel, copper |
| Electrical parameters | |
| Voltage | DC12V, DC24V, AC110V, AC220V (other voltages available on request) |
| Voltage tolerance | ±10% |
| Power consumption | 0.4W, 0.75W (large flow type), 1W special power (customizable) |
| Work cycle | 100% can work continuously |
| Electrical connections | Socket or direct lead wire |
| Protection level | IP50, IP65 (straight-line outlet type) |

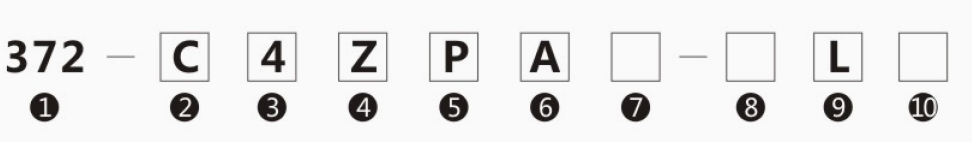

Model Denotation Method Of 372 Series (Model Denotation Method Of direct outgoing line type with plug refers to 371 Series):
Note: When the item is "blank", it will be omitted automatically, as stated above: 372-C4ZPA-L
| symbol | content |
| ① | 372 series |
| ② Function | C: Normally closed (NC) O: Normally open (NO) |
| ③ Voltage | 4: DC24V 2: DC12V 3: AC110V 5: AC220V |
| ④ Socket connection method | Z: 90°right angle type S: 180°horizontal type X:direct outgoing line type |
| ⑤ Circuit board type | P: With two-way indicator light G: With light with protection circuit Blank: Without circuit board J: With energy-saving module (only DC12V DC24V) |
| ⑥ Wiring length |
Blank: No wiring A: Wiring length 125mm |
| ⑦ Plug type | Blank: No plug 1: A1 2: A2 3: A3 4: A4 5: A5 6: A6 7: A7 8: A8 9: A9 |
| ⑧ Exhaust type |
Blank: Two-hole self-exhaust F: Three-hole valve plate exhaust |
| ⑨ Coil power | Blank: 0.75W L: 0.4W H: 1W T: Special power |
| ⑩ Forced lock button |
Blank: No Q: Yes |
