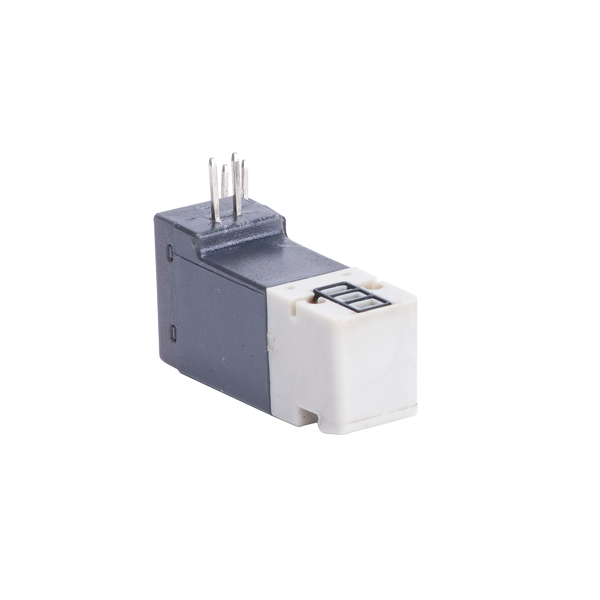

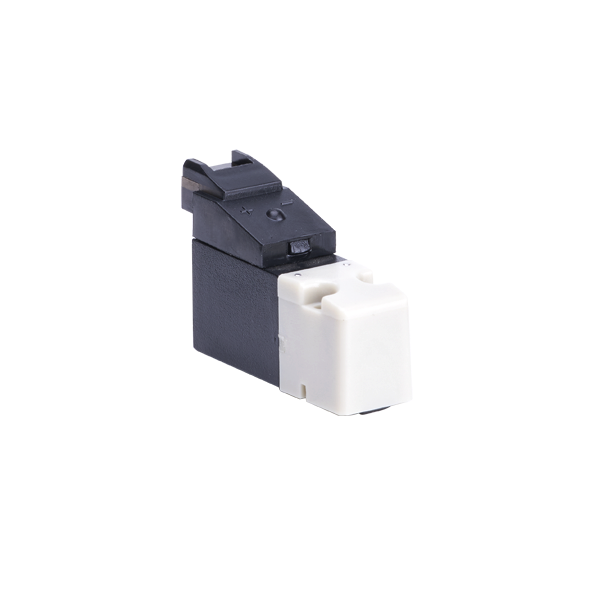

The 373 series direct-acting miniature solenoid valve can be installed in a plate connection or used directly with a single valve seat. The two-position three-way type can control the operation of a single-acting cylinder at high frequency. The valve installed with energy-saving module maintains a power of 0.3W, which greatly reduces power consumption and heat generation. It can be widely used in the fields of knitting machinery, automation, scientific research, etc. Special instructions are required when using vacuum.
Leading 373 Series Direct Acting Miniature Electromagnetic Valve (10mm)Customizable Oxygen generator Solenoid Valve suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

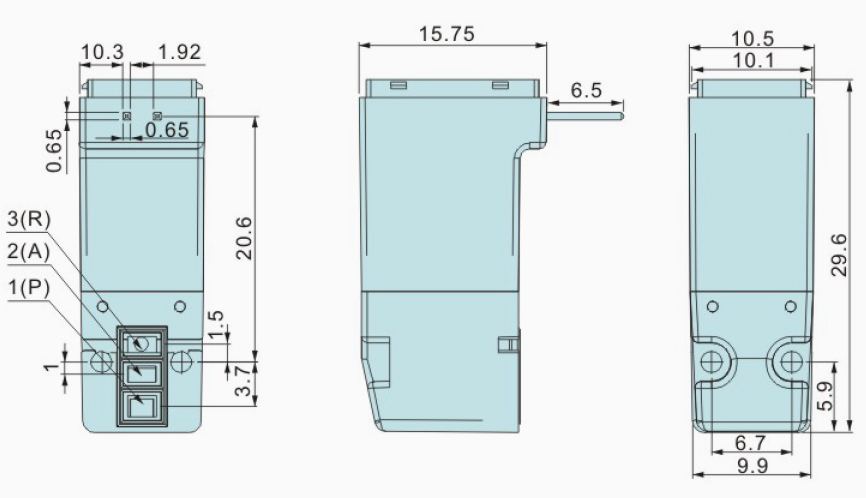

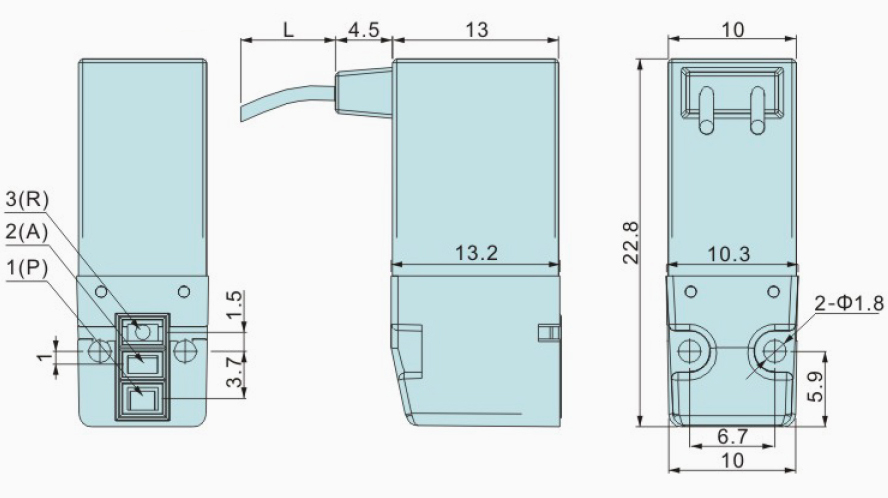

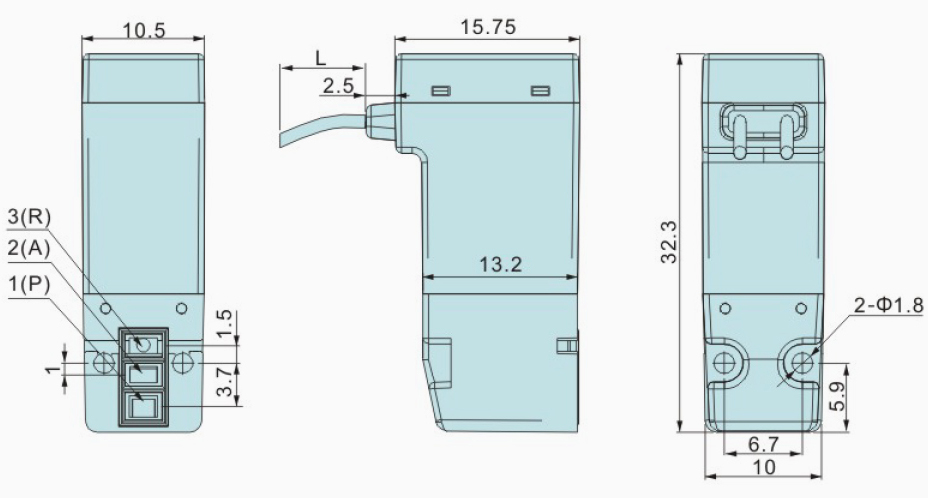

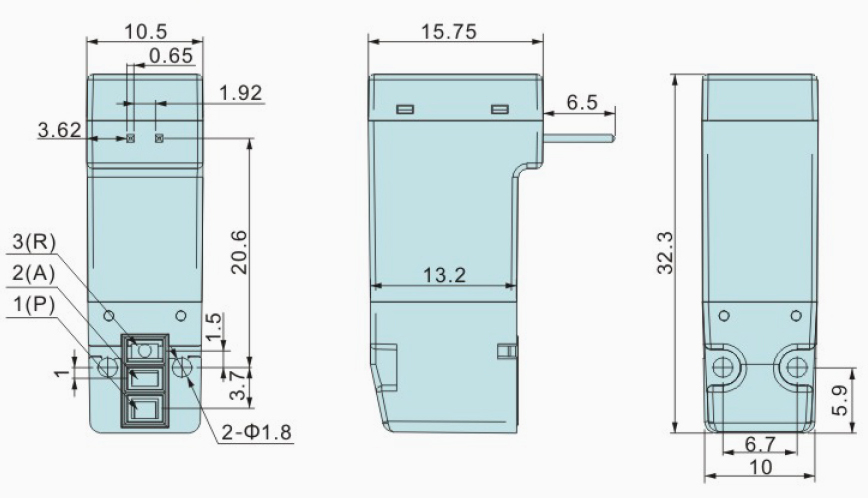

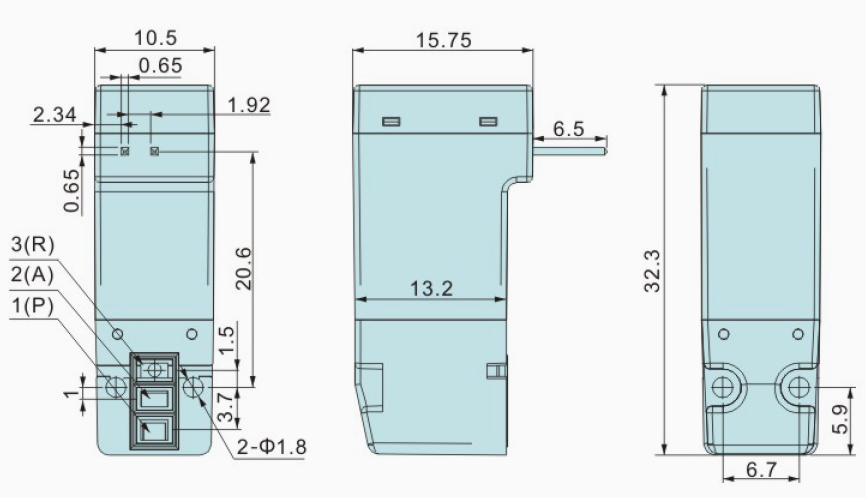

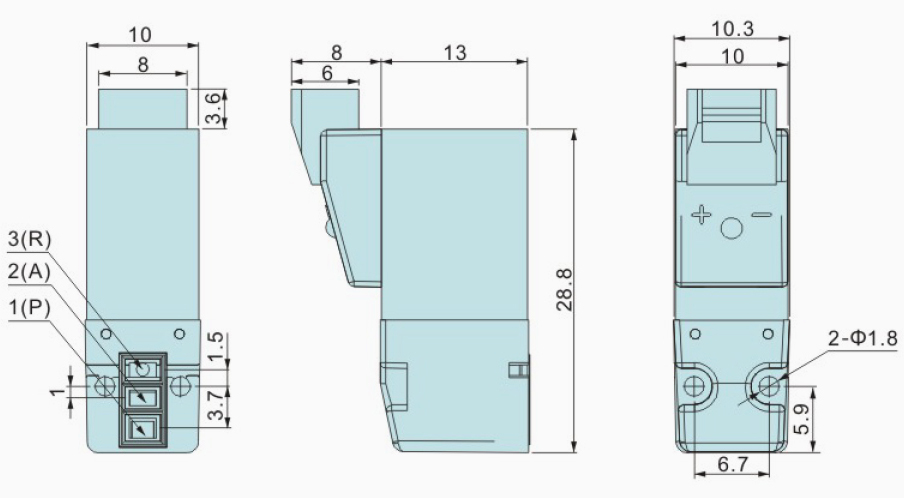

| Two-position three-way normally closed electric circuit diagrams: |  |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
| Two-position three-way normally closed electric circuit diagrams: | |
Comprehensive parameters:
| Pneumatic parameters | |||
| Valve position function | Two-position two-way, two-position three-way, normally closed (NC) or normally open (NO) | Work pressure | 0-7ba, -100kpa (special instructions are required when using vacuum) |
| Way of working | Cut-off | Medium and ambient temperature | -5°C~50°C (but not frozen) |
| Installation method | free | Working medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
| The way to | 0.7mm, 0.9mm. 1.5mm (two-position two-way) | Response time | Open <8ms, close <10ms |
| Nominal flow | 35L/min (at 6bar) | Manual device | without |
| Materials in contact with the medium | |
| Valve body | Engineering plastics |
| Seals | FKM (fluorine rubber), NBR (nitrile rubber) |
| Internal parts | Stainless steel, copper |
| Electrical parameters | |
| Voltage | DC6V, DC12V, DC24V, AC110V, AC220V (other voltages can be provided on request) |
| Voltage tolerance | ±10% |
| Power consumption | 0.75W, 1W (without energy-saving module type), 0.3W (with energy-saving module type) |
| Work cycle | 100% can work continuously |
| Electrical connections | Pins, sockets or direct leads |
| Protection level | IP50, IP65 (straight-line outlet type) |

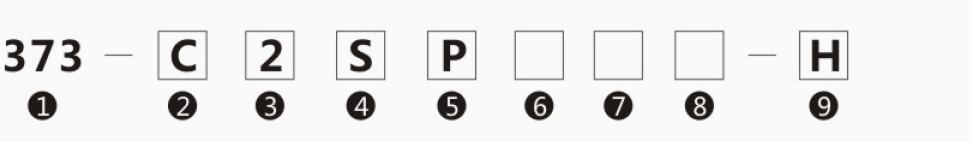

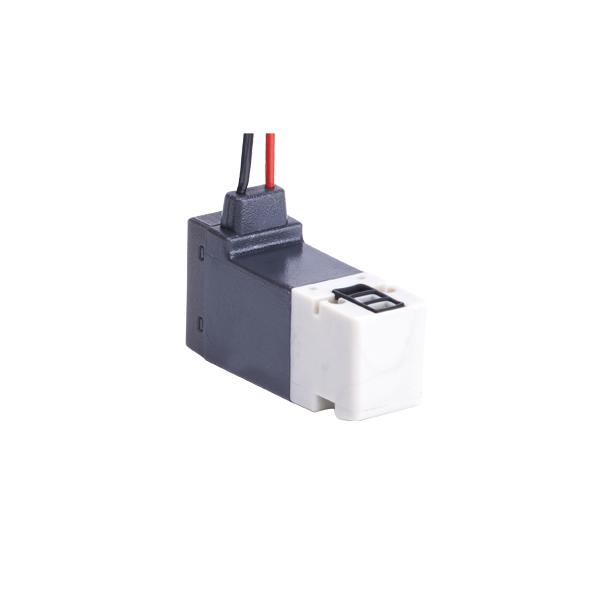

Model Denotation Method Of 373 Series (Model Denotation Method Of direct outgoing line type with plug refers to 371 Series) :
Note: When the item is "blank", the position is automatically omitted, as stated above: 373-C2SP-H
| symbol | content |
| ① | 373 series |
| ② Function | C: Normally closed (NC) O: Normally open (NO) |
| ③ Voltage | 6: DC6V 2: DC12V 4: DC24V 3: AC110V 5: AC220V |
| ④ Socket connection method | Z: 90°right angle type S: 180°horizontal type X: direct outlet type L: Left pin type M: Center pin type |
| ⑤ Circuit board type | P: With two-way indicator light G: With light with protection circuit Blank: Without circuit board J: With energy-saving module (only DC12V DC24V) |
| ⑥ Wiring length | Blank: No wiring A: Cable length 125mm B: Cable length 300mm C: Special requirements |
| ⑦ Plug type | Blank: No plug 1: A1 2: A2 3: A3 4: A4 5: A5 6: A6 7: A7 8: A8 9: A9 T: Special socket |
| ⑧ Exhaust type | Blank:Three-hole self-exhaust |
| ⑨ Coil power | Blank: 0.3W L: 0.75W H: 1W T: Special power |
