YSY3000 series internal pilot pressure differential solenoid valve Φ40 double acting cylinder

YSY3000 series internal pilot pressure differential solenoid valve Φ40 double acting cylinder

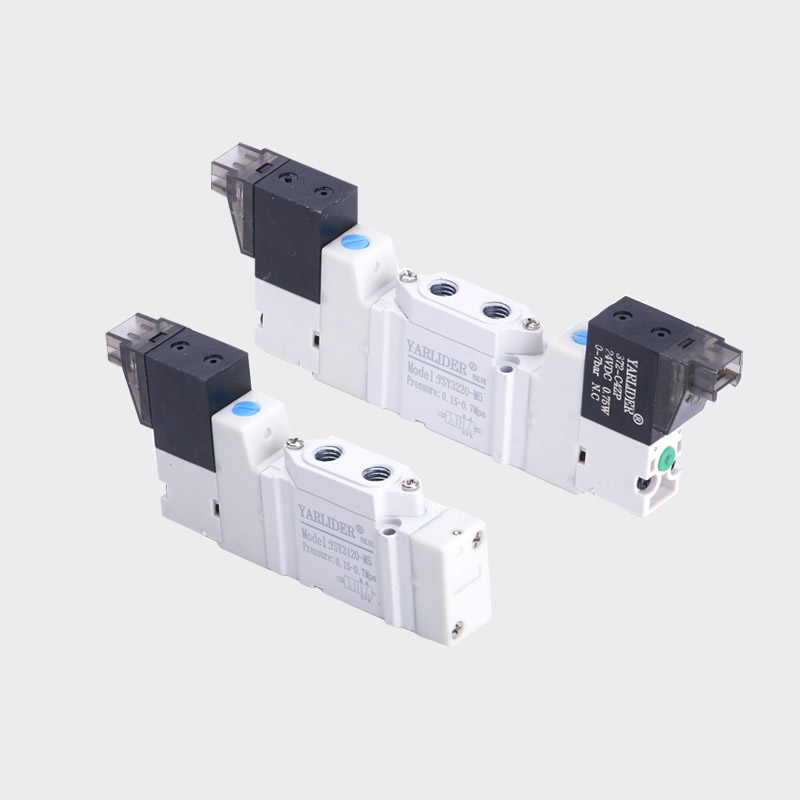

YSY3000 series is a two-position five-way and three-position five-way solenoid valve with internal pilot pressure difference. The power of the pilot valve is as low as 0.4W, which can work reliably for a long time. It is widely used in automation equipment that requires high frequency and reliable operation.

Leading YSY3000 series internal pilot pressure differential solenoid valve Φ40 double acting cylinder suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

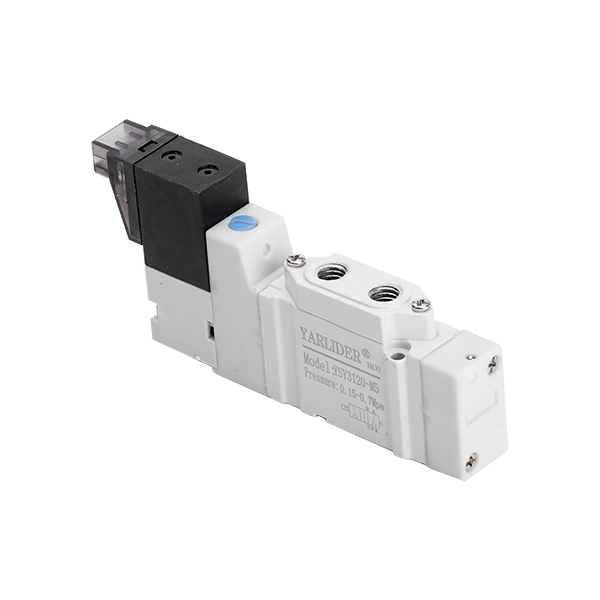

Optional Models:3120-5LZD-M5

Two-position five-way single electric control electric circuit diagrams:
Two-position five-way solenoid valve, single electric control

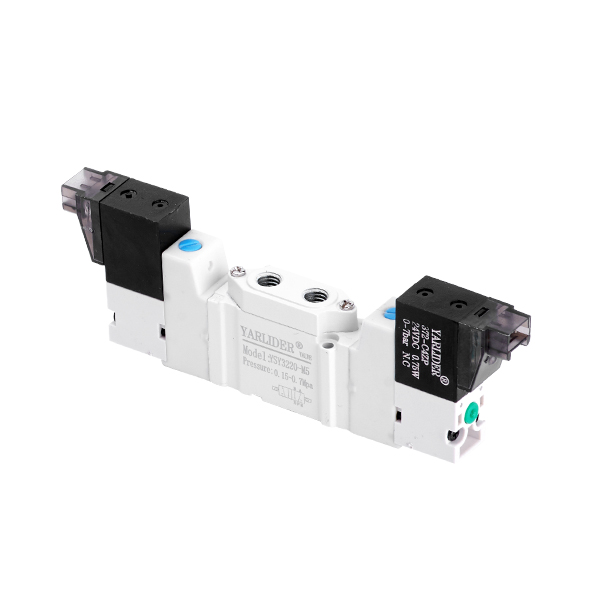

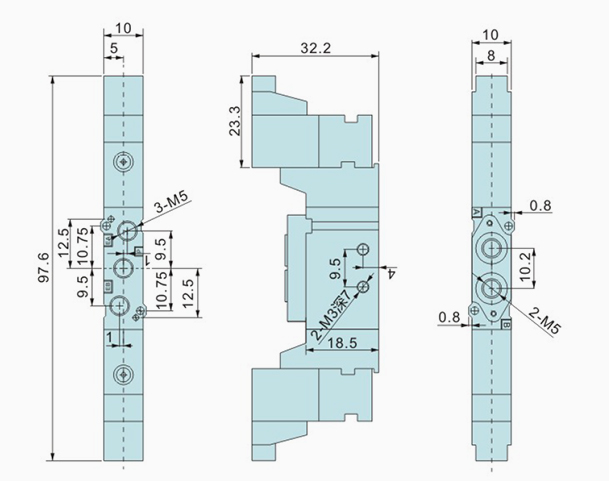

Optional Models:3220-5LZD-M5

Two-position five-way dual electric control gas circuit diagram:
Two-position five-way solenoid valve, double electric control

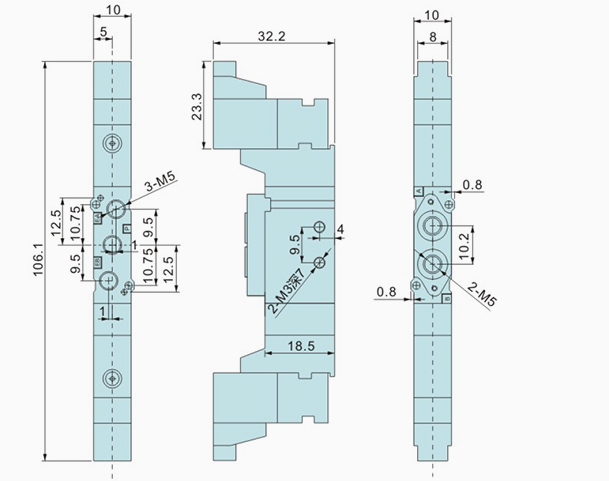

Optional Models:3320-5LZD-M5 (MEDIUM-SEAL TYPE) 3420-5LZD-M5 (MEDIUM-LEAK TYPE) 3520-5LZD-M5 (MEDIUM-VOLTAGE TYPE)

Three-position five-way electric circuit diagram (medium-seal type):

Three-position five-way electric circuit diagram (medium-voltage type):

Three-position five-way electric circuit diagram (medium-leak type):

Three-position five-way solenoid valve (medium seal, medium leak, medium voltage)






Comprehensive parameters:

Pneumatic parameters
Valve position function

Two-position five-way Three-position five-way  (medium seal, medium leak, medium voltage)

Medium and ambient temperature -5°C~50°C (but not frozen)

Working way

Cut-off Working medium Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas
Installation method Free installation Maximum operating frequency 15HZ
Nominal flow 170L/min(P-A) Response time ≤12ms

Working pressure

0.15~0.7MPa (single electric control), 0.1~0.7MPa (dual electric control), 0.2~0.7MPa (three-position five-way) Suitable for bore Φ40 double acting cylinder

Materials in contact with the medium
Valve body Aluminum alloy, engineering plastics
Seals FKM (fluorine rubber), NBR (nitrile rubber)

Electrical parameters
Voltage DC6V, DC12V, DC24V, AC110V, AC220V
Voltage tolerance ±10%

Consumed power

0.4W

Working cycle

100% can work continuously

Electrical connection

Socket or direct outgoing line

Lubrication

Unnecessary

Experimental life 70 million times

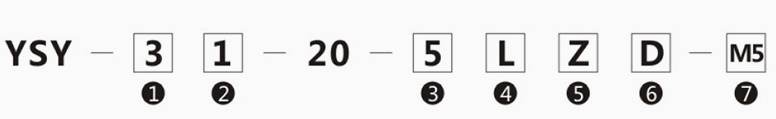

Model Denotation Method Of YSY3000 Series:

symbol content
YSY3000 series
② Function

1: Two-position single electric control 2: Two-position double electric control 3: Three-position medium-seal type
4: Three-position medium-leak type 5: Three-position medium-voltage type

③ Voltage 5: DC24V 6: DC12V V: DC6V
3: AC110V 4: AC220V T: Special voltage
④ Wire lead-out method L: 90° right-angled line length 300mm
M: 180° horizontal line length 300mm X: direct outgoing line type
⑤ Indicator light Z: With indicator light and overvoltage protection Blank: Without indicator light
⑥ Manual operation mode

D: Rotary locking type when the turning tool is pressed down Blank: No

⑦ A. B interface thread M5: M5x0.8
