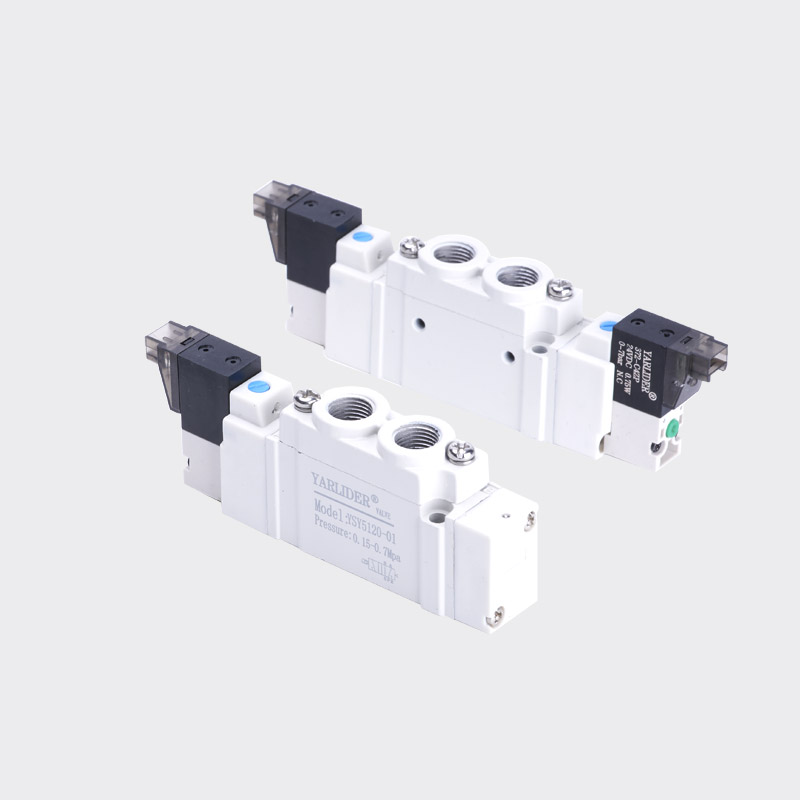

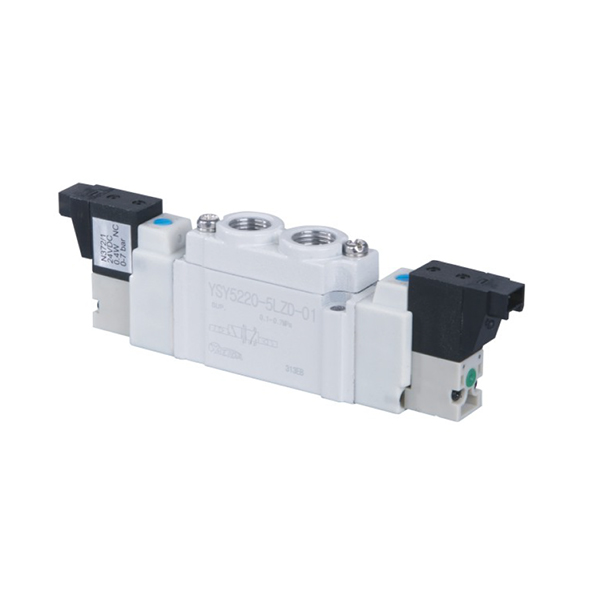

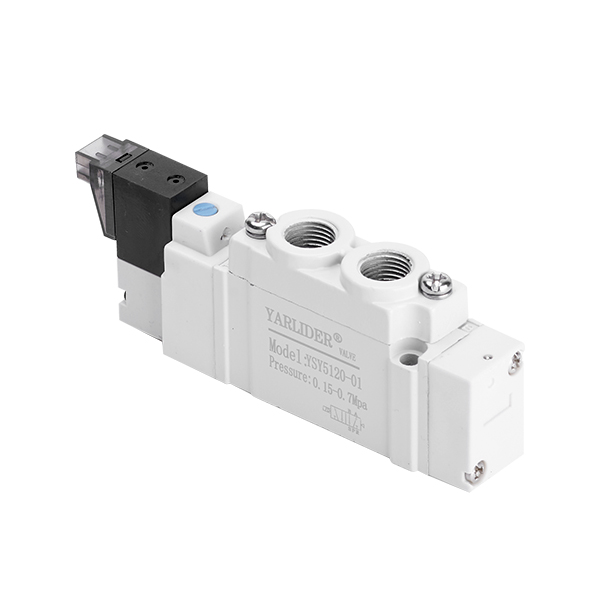

YSY5000 series is a two-position five-way solenoid valve with internal pilot pressure difference. The power of the pilot valve is as low as 0.4W, which can work reliably for a long time. It is widely used in automation equipment that requires high frequency and reliable operation.
Leading YSY5000 series internal pilot pressure differential solenoid valve Φ63 double-acting cylinder suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.
| Two-position five-way single electric control gas circuit diagram: | |
| Two-position five-way dual electric control gas circuit diagram: |  |
| Three-position five-way air circuit diagram (center-sealed): |  |
| Three-position five-way air circuit diagram (medium pressure type): |  |
| Three-position five-way air circuit diagram (in the vent type): |  |
Comprehensive parameters:
| Pneumatic parameters | |||
| Valve position function | Two-position five-way connection Three-position five-way connection (medium seal, medium drain, medium pressure) | Medium and ambient temperature | -5°C~50°C (but not frozen) |
| Way of working | Cut-off | Working medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
| Installation method | Free installation | Maximum operating frequency | 5HZ |
| Nominal flow | 370L/min(P-A) | Response time | ≤12ms |
| Work pressure | 0.15~0.7MPa (single electric control), 0.1~0.7MPa (dual electric control), 0.2~0.7MPa (three-position five-way) | Suitable for bore | Φ63 double-acting cylinder |
| Materials in contact with the medium | |
| Valve body | Aluminum alloy, engineering plastics |
| Seals | FKM (fluorine rubber), NBR (nitrile rubber) |
| Electrical parameters | |
| Voltage | DC6V, DC12V, DC24V, AC110V, AC220V |
| Voltage tolerance | ±10% |
| Power consumption | 0.4W |
| Work cycle | 100% can work continuously |
| Electrical connections | Socket or direct lead wire |
| lubricating | unnecessary |
| Experimental life | 70 million times |

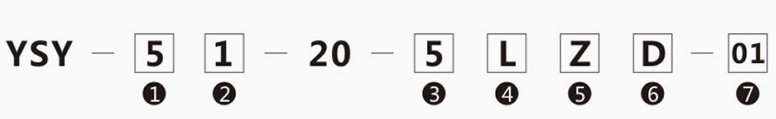

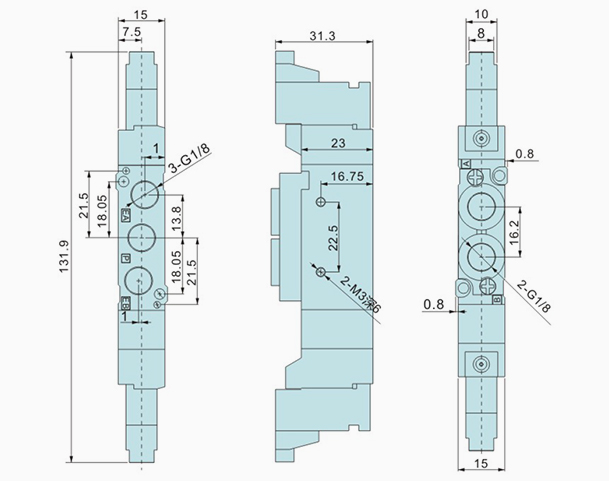

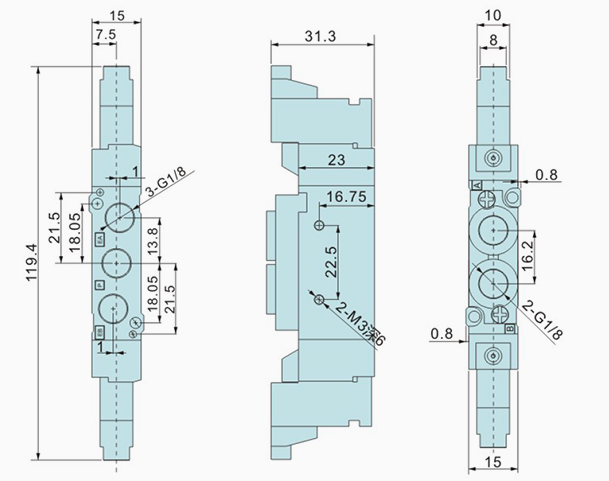

YSY5000 series model representation method:
| symbol | content |
| ① | YSY5000 series |
| ② Function | 1: 2 digits single electric control 2: 2 digits double electric control 3: 3 digits center-sealed 4: 3-position mid-pressure type 5: 3-position mid-pressure type |
| ③ Voltage | 5: DC24V 6: DC12V V: DC6V 3: AC110V 4: AC220V |
| ④ Wire lead-out method | L: 90° right-angled line length 300mm M: 180° horizontal line length 300mm X: direct line type |
| ⑤ Indicator light | Z: With indicator light and overvoltage protection Blank: Without indicator light |
| ⑥ Manual operation mode | D: Rotary locking type when screwdriver is pressed down Blank: None |
| ⑦ A, B interface thread | 01: G1/8 |
