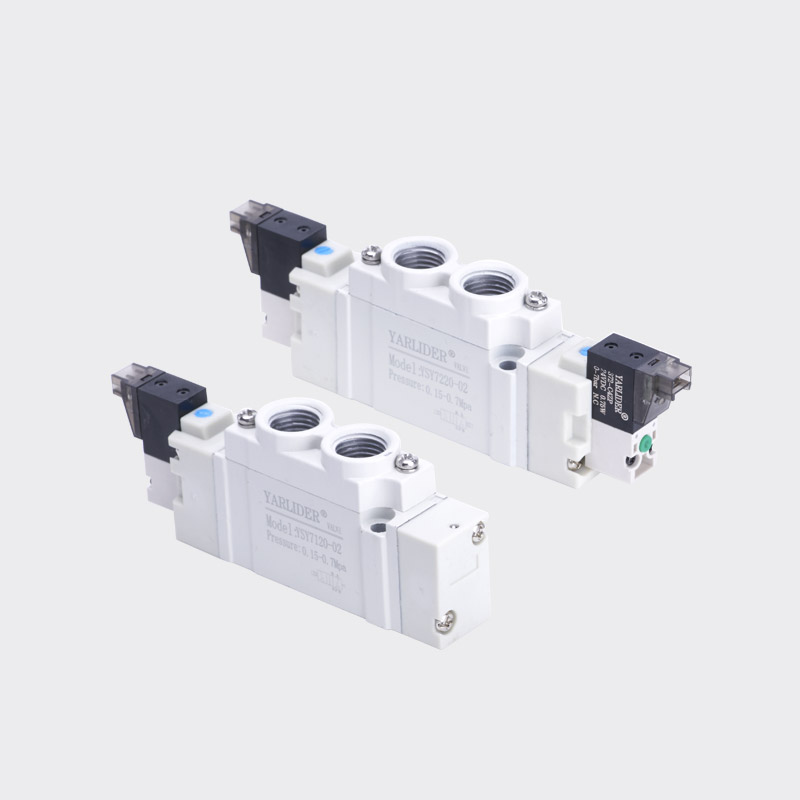

YSY7000 series internal pilot pressure differential solenoid valve Φ80 double acting cylinder

YSY7000 series internal pilot pressure differential solenoid valve Φ80 double acting cylinder

YSY7000 series is an internal pilot differential pressure type: two-position five-way solenoid valve, three-position five-way solenoid valve. The power of the pilot valve is as low as 0.4W, which can work reliably for a long time. It is widely used in automation equipment that requires high frequency and reliable operation.

Leading YSY7000 series internal pilot pressure differential solenoid valve Φ80 double acting cylinder suppliers and company in China, We also offer wholesale. The company has fully passed CE, 3C, SAEJ844, 16949 certifications for export to the European Union.

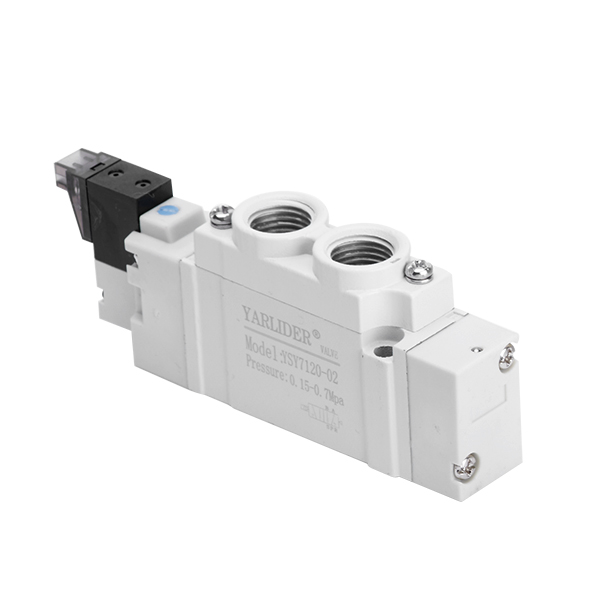

Optional Models:7120-5LZD-02

Two-position five-way single electric control gas circuit diagram:
Two-position five-way solenoid valve, single electric control

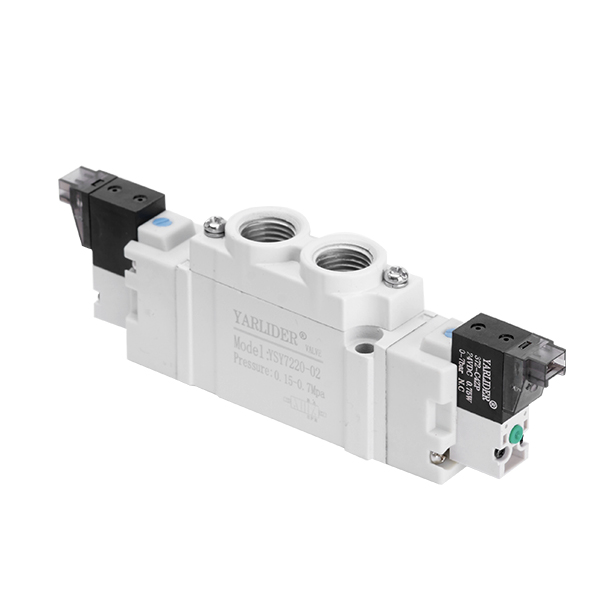

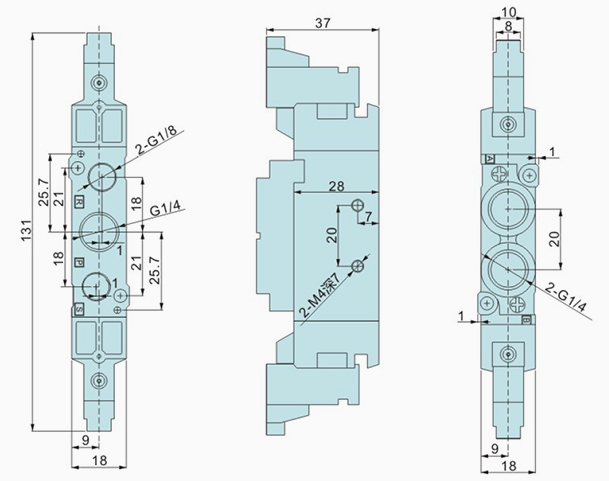

Optional Models:7220-5LZD-02

Two-position five-way dual electric control gas circuit diagram:
Two-position five-way solenoid valve, double electric control

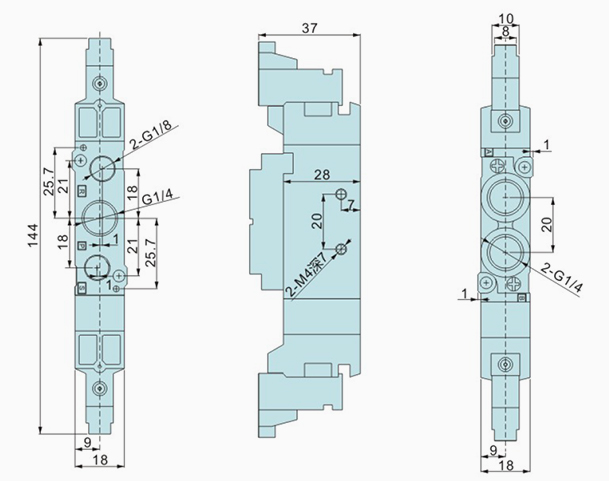

Optional Models:7320-5LZD-02 (middle seal type) 7420-5LZD-02 (middle drain type) 7520-5LZD-02 (medium pressure type)

Three-position five-way air circuit diagram (middle-sealed type):

Three-position five-way air circuit diagram (medium pressure type):
Three-position five-way air circuit diagram (middle vent type):
Three-position five-way solenoid valve (medium seal, medium drain, medium pressure)




Comprehensive parameters:

Pneumatic parameters
Valve position function Two-position five-way connection Three-position five-way connection (medium seal, medium drain, medium pressure) Medium and ambient temperature -5°C~50°C (but not frozen)
Way of working Cut-off Working medium Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas
Installation method Free installation Maximum operating frequency 5HZ
Nominal flow 500L/min(P-A) Response time ≤12ms
Work pressure 0.15~0.7MPa (single electric control), 0.1~0.7MPa (dual electric control), 0.2~0.7MPa (three-position five-way) Suitable for bore Φ80 double acting cylinder

Materials in contact with the medium
Valve body Aluminum alloy, engineering plastics
Seals FKM (fluorine rubber), NBR (nitrile rubber)

Electrical parameters
Voltage DC6V, DC12V, DC24V, AC110V, AC220V
Voltage tolerance ±10%
Power consumption 0.4W
Work cycle 100% can work continuously
Electrical connections Socket or direct lead wire
lubricating unnecessary
Experimental life 70 million times

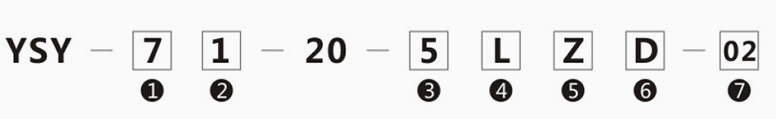

YSY7000 series model representation method:

symbol content
YSY7000 series
② Function 1: 2 digits single electric control 2: 2 digits double electric control 3: 3 digits center enclosed
4: 3-position mid-pressure type 5: 3-position mid-pressure type
③ Voltage 5: DC24V 6: DC12V V: DC6V
3: AC110V 4: AC220V
④ Wire lead-out method L: 90° right-angled line length 300mm
M: 180° horizontal line length 300mm X: direct line type
⑤ Indicator light Z: With indicator light and overvoltage protection Blank: Without indicator light
⑥ Manual operation mode D: Rotary locking type when the screwdriver is pressed down Blank: None
⑦ A, B interface thread 02: G1/4
